Blind Update Tool (BUT)

Purpose

A new tool enabling participants to submit data to AEMO Australian Energy Market Operator, called Blind Update Tool Allows participants to submit a csv formatted payload containing data for new CATS Standing Data fields requiring a value A limited subset of CATS CR validations is applied to a BUT Submission The History Model is not updated so not suitable for Settlement or Compliance Standing Data (BUT Blind Update Tool). The BUT performs blind updates by taking the current record and overwriting NMI Standing Data See National Electricitiy Rules records. The creation and maintenance dates remain unchanged.

BUT does not:

• Send notifications to participants.
• Create new records.

BUT is new capability, different to the existing Bulk Change Tool A component of MSATS used by AEMO to make bulk changes to data without requiring the submission of Change Requests. The History Model is updated so suitable for Settlement or Compliance Standing Data (BCT Bulk Change Tool) or Bulk Data Tool (BDT). For more details, see AEMO Update Toolbox.

BUT use

Post-November 2022, for the nominated Field ID and Business As defined in the NERL. Key, you can update an existing field using BUT for any of these parameters:

• NEW NOT NULL: Submitted value cannot be NULL
• BUT ONCE: Field can only be updated once
• CURRENT IS NULL: Will update where the current value is NULL or not NULL

How can I update?

Participants can use the following methods to populate or update values:

• Blind Update Tool
• Existing fields: CR2xxx & CR5xxx

BUT run time

For this Release the BUT run time is every 3 minutes.

This time is configurable and may change when the BUT is used for other Releases.

When and what can I update?

MSDR phase 1

Field name	Type	Data type	Value	Required	Description	Updater	BUT table ID	From	Due
Shared Isolation Point Flag AEMO populates the default value as NULL when it is created	New fields only	String(1)	I	Yes	The metering installation is Isolated independently but still part of a shared fuse arrangement	LNSP	NMI_DATA	Pre-production: Tuesday 2 August 2022 Production: Wednesday 31 August 2022	1 May 2023
			N		No shared fuse arrangement is present
			U		Unknown
			Y		A shared fuse arrangement is present



MSDR phase 2

For details, see MSATS 48.0 Technical Specification – November 2022.

Who can update?

For more details about participant NMI See Relevant Rules or Procedures relationships, see:

• Technical Guide to MSATS > Participant Role The role a company has with a connection point in CATS. A single company can have more than one role associated with a NMI. Relationship.
• MSATS Procedures – CATS Procedure Principles and Obligations > Access To Cats Standing Data.

Fields and roles

MSDR phase 1

Field	FRMP	LR	LNSP	MDP	MPB	MPC	RP	RoLR	NEMM	NSP2 DSRP
SHARED_ISOLATION_POINT_FLAG	x	x	þ	x	x	x	x	x	x	x



MSDR phase 2

For details, see MSATS 48.0 Technical Specification.

Which interfaces can I use?

Participants can use the following interfaces to submit their csv payload Payload and retrieve the processing results:

1. MSATS Web Portal: Upload, track status, and retrieve submission results.

2. AEMO’s API Gateway: Submit, track status, and retrieve submission results via API calls. AEMO will provide the OAS specification and endpoint details as the design progresses.

How do I see updated fields?

Submitting party

For the party submitting the BUT Payload The content in the csv file. For example: For APIs, it is the data sent by a POST request that sits after the API header. For MSATS transactions, it is the data wrapped in the standard aseXML wrapper. For NEM reports it is the csv payload compressed in a zip file., you can download the Submission A Bid/Offer submission can have: 1. Multiple Trading Days 2. Multiple DUIDs/LinkIDs 3. All Service Types in the same Submission response with the status of the update using the API Application Programming Interface; a set of clearly defined methods of communication between various software components. or MSATS Market Settlement and Transfer Solutions. The procedures published by AEMO under clause 7.2.8 of the National Electricity Rules, which include those governing the recording of financial responsibility for energy flows at a connection point, the transfer of that responsibility between market participants, and the recording of energy flows at a connection point. Web Portal interfaces.

Other parties

For other parties having a relationship with the NMI, you can see the modified fields in a C1 or MSATS Snapshot report, retrieved using API, file, or web interface. The reports provide no specific indication the Blind Update Tool altered the data or when.

Submission

Prerequisites

Before upload or submit, you must:

1. Have a Participant ID.

2. Have a user ID and password with BUT access rights provided by your company's participant administrator. For details, see User Rights Management (URM) Page 1.

3. Understand the MSATS procedures > Provision and maintenance of CATS Standing Data.

4. Test your submission in the pre-production environment interface before submitting to production. AEMO encourages participants to use the pre-production environment to test procedures and train staff.

Submission row limit

The limit for a single Payload is 100,000 rows (configurable).

Submission process

Participant Roles having a current relationship with the NMI use the following self-service process to upload and view Blind Update Submissions. There is no coordination required with AEMO.

The high-level submission process is:

1. Participants create a csv Payload with their Blind Update Submissions following AEMO’s CSV Data Format Standard.
2. Participants send the csv Payload to AEMO using one of the following interfaces:
   • MSATS Web Portal
   • API e-Hub Gateway
3. AEMO receives and validates the submission for security and syntax (typically not business validations at this stage).
4. AEMO acknowledges the submission with Accept or Reject. Accept or Reject applies to the entire payload.
5. If AEMO accepts the submission, it applies business validations and processes the updates later.
6. Participants can track their submission status using the API or MSATS Web Portal interfaces.
7. Participants can download the processing results when they are ready using the API or MSATS Web Portal interfaces. The processing results are a mixture of payload successes and failures. The content is a similar csv format to the Submission with some extra columns.

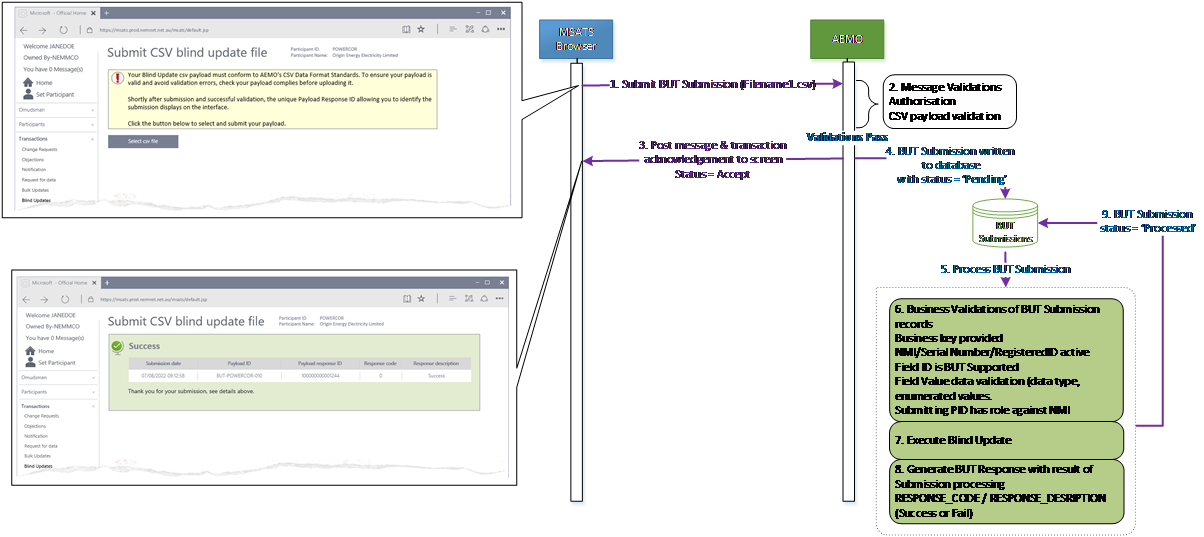

Submission process diagram





Submission status

For each step in the process, your submission has the following statuses:

Who	Action	From status	To status	Description	Response?
Participant	Submit	n/a	ERROR	Security & syntax validation fail Applies to the entire payload, not individual rows The entire submission is rejected No further processing	Acknowledgement Payload is not stored
Participant	Submit	n/a	PENDING	Security & syntax validation pass Applies to the entire payload, not individual rows Initial accepted status	Yes, Payload is stored
AEMO	Process	PENDING	PROCESSED	All rows processed where each payload row is updated with a success or fail reason and a timestamp Result awaiting participant download	Yes, with row level responses
Participant	Retrieve result	PROCESSED	DOWNLOADED	BUT end-to-end process complete Downloads can be repeated Only the first download moves status from PROCESSED to DOWNLOADED	Yes, with row level responses



Valid submission

Invalid submission

Submission payload and subtypes

There are new record types for Blind Update Submissions:

Type	Payload type	Payload subtype	CATS table
Participant submission	BLIND_UPDATE_SUBMISSION (BUS)	NMI_DATA	NMI DATA
		METER_REGISTER	METER_REGISTER
		REGISTER_IDENTIFIER	REGISTER_IDENTIFIER
AEMO acknowledgement	BLIND_UPDATE_TOOL (BUT)	n/a	n/a
	BLIND UPDATE ACKNOWLEDGEMENT (BUA)	n/a	n/a
AEMO response	BLIND_UPDATE_RESPONSE (BUR)	NMI_DATA	NMI DATA
AEMO response	BLIND_UPDATE_RESPONSE (BUR)	NMI_DATA	NMI DATA
AEMO response	BLIND_UPDATE_RESPONSE (BUR)	METER_REGISTER	METER_REGISTER

Business keys

A BUT Submission D field can only contain unique record type business-key combinations. For each record type, the business keys are defined as a combination of the following D fields and the updated column.

Subtype	D row 1	D row 2	D row 3	Column	Example
NMI_DATA	NMI	n/a	n/a	Section Number	N123456789,Section 23K
				DP Number	N123456789,DP 825310
				Connection Configuration	N123456789, L1
METER_REGISTER	NMI	Meter Serial	n/a	Controlled Load	Y, N, EXT
REGISTER_IDENTIFIER	NMI	Meter Serial	Register ID	Manufacturer	N123456789,123-AZ56,13, EDMI
				Model	N123456789,123-AZ56,13,Q4
				Read Type Code	N123456789,123-AZ56,13, RTDA
				Use	N123456789,123-AZ56,13,REVENUE
				GPS Coordinates Lat	N123456789,123-AZ56,13,-37.8886755
				GPS Coordinates Long	N123456789,123-AZ56,13,+145.1410361







Submission rules

The submission:

• Must adhere to AEMO’s CSV Data Format Standard.

• Each record in the Blind Update Payload must start with one of the following 3 characters:

  • C = comment (metadata)

  • I = information

  • D = data

• Must have a C record for its first and last row.

• Can have each csv Comma Separated Values. A file format for data using commas as delimiters. row containing a single new value for a single column for a specific MSATS record. If you are updating multiple columns for a single MSATS record in the same submission payload, there is one csv row per column.

• Can have any mixture of tables and columns.

• Can have mixed BUT record types.

C – comment data

First payload row

The first row of the Blind Update Payload is C and must consist of the following 13 comma separated values:

Column	Row	Field	Example	Data format	Required
A	C	Row type (C, I, D)	C	UPPERCASE	ü
B	C	SYSTEM	The AEMO environment: PROD PREPROD	UPPERCASE	ü
C	C	REPORT ID	BLIND_UPDATE_SUBMISSION: For participants to send blind update requests to AEMO BLIND_UPDATE_RESPONSE: For AEMO to send blind update responses to participants	UPPERCASE	ü
D	C	FROM	PARTICIPANTID	UPPERCASE	ü
E	C	TO	NEMMCO	UPPERCASE	ü
F	C	PAYLOAD CREATION DATE	2021/09/03	YYYY/MM/DD (Market Time e.g. AEST)	ü
G	C	PAYLOAD CREATION TIME	22:04:05	HH24:MI:SS (Market Time)	ü
H	C	EVENT QUEUE ID	EMMS only. Empty column for BUT submissions		Blank column
I	C	DATA MODEL FILE ID			Blank column
J	C	EVENT QUEUE GROUP ID			Blank column
K	C	MARKET	NEM	UPPERCASE	ü
L	C	PAYLOAD ID	Initiator provided payload reference. It can be any combination of characters; however, it should be unique	UPPERCASE Free text (50)	ü
M	C	PAYLOAD RESPONSE ID	Empty for a BLIND_UPDATE_SUBMISSION Responder (AEMO) provided unique payload reference for the BLIND_UPDATE_RESPONSE (e.g. 324-BB321) Also provided in the sync payload acknowledgement	UPPERCASE	û



First record C - participant submission example

The commas represent the H, I, J columns used by other payloads and not used by a Blind Update Payload. These are vital containers in the csv data format structure and cannot be ignored.

C,PROD,BLIND_UPDATE_SUBMISSION,PARTICIPANTID,NEMMCO,2021/09/03,22:04:05,,,,NEM,000000000123002

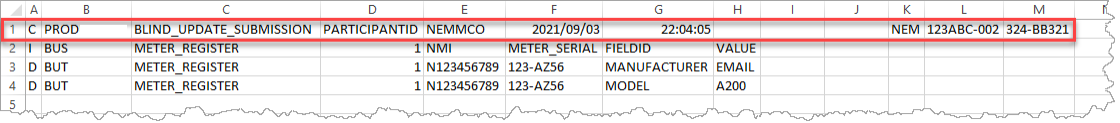

First C row spreadsheet example

First C row text editor example

Last payload row

The last row in the Payload is also a C row with the record count to check all records are received. The record count includes all rows in the payload (C, I, and D). It must have the following values:

Field	Example	Data format	Required
End of report indicator	END OF REPORT	UPPERCASE	Yes
Count of records	45917	Numeric	Yes



Last C row spreadsheet example

Last C row spreadsheet example

I and D rows

Below are the I – information row and D – data row record definitions for each BUT submission.

NMI_DATA BUT submission

Field	I row	D row	Data format/notes
Record type	I	D	Fixed value
Payload type	BUS	BUS	See payload types and subtypes
Payload subtype	NMI_DATA	NMI_DATA	See payload types and subtypes
Payload version	1	1	Fixed value
NMI	NMI	N123456789	10-character NMI
Field ID	FIELD	SHARED_ISOLATION_POINT_FLAG SECTION_NUMBER DP_NUMBER CONNECTION_CONFIGURATION	For effective dates, see payload types and subtypes String(1) String(20) String(20) String(2)
Value	VALUE	Y Section 23K DP 825310 L1	See Field details



NMI_DATA BUT submission example

Spreadsheet

Text

METER_REGISTER BUT submission

BUS,METER_REGISTER,1 row

Field	I row	D row	Data format/Notes
Record type	I	D	Fixed value
Payload type	BUS	BUS	See payload types and subtypes
Payload subtype	METER_REGISTER	METER_REGISTER	See payload types and subtypes
Payload version	1	1	Fixed value
NMI	NMI	N123456789	10-character NMI
Meter Serial	METER_SERIAL	123-AZ56	12 characters
Field ID	FIELD	GPS_COORDINATES_LAT GPS_COORDINATES_LONG	For effective dates, see payload types and subtypes
Value	VALUE	-37.8409350 144.9464570	Decimal(2,7) Decimal(3,7) See Field details



METER_REGISTER BUT submission example

Validation

There is a change to BUT NMI validation where BUT can update NMIs regardless of their Status Code Energy Rules Terms. This means BUT can update Standing Data for active (NMI Status Code A code used in MSATS to determine if a NMI can be the subject of a retail transfer. For more detail, see the CATS Procedures. = A), not energised (D, G), Extinct (X), or off market NMIs.

MSDR enumerations

So participants can validate the enumerations against the procedures, AEMO will publish Energy Rules Terms the list of enumerations with Code groups and descriptions on the website. We will provide more detail as the design evolves.

Validation rules

Pass

If the entire submission is valid, the Initiator The participant initiating a B2B Interaction. receives a positive Acknowledgement 200 with the response code and description.

Fail

The entire Submission is rejected with a negative message acknowledgment sent to the Initiator if it:

1. Fails header validation

2. Fails CSV Payload validation

3. Fails message level validation

4. Has duplicate update instructions (same field for the same NMI Standing Data record)

5. Where a D row or field within the row fails validation, MSATS does not update the CATS Standing Data field.

6. The submission response D record is updated with the validation failure code and description, for example:

Field	I record	D Record example
Response code	RESPONSE_CODE	56
Response description	RESPONSE_DESRIPTION	The participant does not have a current role for the NMI

ASCII character validation

For schema validation, AEMO follows the W3C XML open standard. The following non-supported CDATA (non-parsed character data) characters do not pass schema validation:

&
>
"
'

AEMO advises participants to always use the word and to avoid the following error:

Codes and Descriptions

See Guide to Web Blind Update Tool > Validation (draft).

Acknowledgement

Participants receive a message acknowledgment after a BUT submission indicating AEMO received it. This message is acknowledgment of receipt only.

Format

The acknowledgement content is in AEMO’s CSV Data Format Standard.

Acknowledgement payload

Field	Comment
Submission Date	The submission date and time, e.g. 2022-04-07T10:10:33+10:00
Payload ID	The submitting participant provided value in the C record of the BUT Submission CSV Payload, e.g. BUT-PARTID-010
Payload Response ID	The AEMO generated unique identifier provided as a reference, e.g. 100000000001244



Acknowledgement example

Submission response

Depending on the interface used, participants download (web) or request (API) the submission response.

Format

The content of a submission response is in AEMO’s CSV Data Format Standard.

Submission response contents

The response payload contains the submission payload with the following changes:

• From and To are reversed

• Creation time is updated

• Payload ID is populated with the same value provided by the Initiator in the C row (L column) of the Submission.

• Response The information returned by an API after a request is made. Responses are usually in JSON or XML format. Payload ID has the AEMO-generated unique identifier provided as a reference in the BUT Submission Message acknowledgment and the BUT Response.

• BUS Payload Type is changed to BUR

Field	I record	D Record
Response Code	RESPONSE_CODE	1
Response Description	RESPONSE_DESRIPTION	Success/Error



Submission response payload

NMI_DATA BUT response

Field	I row	D row examples	Data format/notes
Record type	I	D	Fixed value I or D
Payload type	BUR	BUR	Identical to the participant provided BUT submission For effective dates, see payload types and subtypes
Payload subtype	NMI_DATA	NMI_DATA
Payload version	1	1
NMI	NMI	N123456789
Field ID	FIELD	SHARED_ISOLATION_POINT_FLAG SECTION_NUMBER DP_NUMBER CONNECTION_CONFIGURATION
Value	VALUE	Y Section 23K DP 825310 L1
Response Code	RESPONSE_CODE	1 -nn Etc.	Numeric result of BUT Submission D record validation
Response description	RESPONSE_DESRIPTION	Success/fail	Character 100 result of BUT Submission D record validation



BUT response example

METER_REGISTER BUT response

Field	I row	D row	Data format/notes
Record type	I	D	Fixed value I or D
Payload type	BUR	BUR	Identical to the participant provided BUT submission
Payload subtype	CATS_METER_REGISTER	CATS_METER_REGISTER
Payload version	1	1
Field ID	FIELD	GPS_COORDINATES_LAT GPS_COORDINATES_LONG	For effective dates, see payload types and subtypes
NMI	NMI	N123456789
Meter Serial	METER_SERIAL	123-AZ56
Register ID	REGISTER_ID	13
New Value	NEW_VALUE	-37.840935 144.946457
Status	STATUS	ERROR UPDATED
Return Code	RETURN_CODE	1 -nn Etc.	Numeric result of BUT Submission D record validation
Return Message	RETURN_MESSAGE	Success/error description	Character 100 result of BUT Submission D record validation
Old Value	OLD_VALUE
Updated Row ID	UPDATED_ROW_ID	nnnnnnnnnnn
BUT Update timestamp	BUT_UPDATE_TS	yyyy/mm/dd hh24:mi:ss 2022/06/23 09:23:43



Message response example

You can download the results using the MSATS Web Portal or API
