6 B2M

6.1 B2M aseXML schema

To obtain schemas, guidelines, whitepapers etc, see aseXML Standards.

This schema release r46 affects B2M Business-to-Market.

For help with schema transitions, see Guide to Transition of aseXML.

For potentially impacted files, transactions, and versioned types for r46, see Impact summary.

6.1.1 Schema changes summary

Affected files

New

Modified

aseXML_r46

n/a

Included file versions:

  • ElectricityMasterStandingData

  • Enumerations

  • ClientInformation

ElectricityMasterStandingData_r46

Elements to support requirements related to the LMRP, Site Defects, and Site Defect Notifications:

  • LegacyMtrReplacementPlan

  • DefectFlag

  • DefectIssuingMC

  • DefectType



Enumerations

4 new enumerations:

  • LL   - LOWER LEVEL

  • PTHS - PENTHOUSE

  • PL   - PLATFORM

  • PD   - PODIUM







AustralianFloorOrLevelType - Maximum length updated from 2 to 4 characters



Adds comment to describe the name mapping from AS4590.1:2017 to the aseXML for AustralianStreetName:

  • AS4590.1:2017 abbreviation – aseXML Abbreviation - Name

  • FRTL - FITR - FIRETRAIL

  • AV - AVE - AVENUE

  • CR - CRES - CRESCENT

  • GLDE – GLD - GLADE

  • PWY – PKWY - PARKWAY

Adds comment to describe the name mapping from AS4590.1:2017 to the aseXML for AustralianFlatOrUnitType:

  • AS4590.1:2017 abbreviation – aseXML Abbreviation - Name

  • DUPL - DUP - DUPLEX

  • FCTY - FY - FACTORY

  • FLAT – F - FLAT

  • MBTH – MB - MARINE BERTH

  • OFFC – OFF - OFFICE

  • ROOM - RM - ROOM

  • STLL - SL - STALL

  • UNIT - U - UNIT

  • WHSE - WE – WAREHOUSE

ClientInformation_r46

New element BuildingOrPropertyName2

BuildingOrPropertyName

  • Updates maximum length from 30 to 50 characters

  • Removes the MaxOccurs value

StreetName – Updates maximum character length from 30 to 45 characters

FloorOrLevelType – Updates maximum character length from 2 to 4 characters

To minimise significant changes in participants’ systems, AustralianStreetName and AustralianFlatOrUnitType retains certain enumerations rather than changing them as defined in AS4590.1:2017. The enumerations schema file includes comments to map the AS4590.1:2017 Abbreviation to the aseXML A standard for energy transactions in XML. A set of schemas and usage guidelines that define how data should be exchanged under FRC in the gas and electricity industries in Australia. abbreviation.

6.1.2 B2M schema release implementation

During the pre-production and production implementations, participants’ preferences for their B2M transaction receiving schema version is transitioned by AEMO Australian Energy Market Operator in the MSATS Market Settlement and Transfer Solutions. The procedures published by AEMO under clause 7.2.8 of the National Electricity Rules, which include those governing the recording of financial responsibility for energy flows at a connection point, the transfer of that responsibility between market participants, and the recording of energy flows at a connection point. Web Portal > Participants > Participant Schema See aseXML Schema. as follows:

Before MSATS release

During implementation

After MSATS release

Transaction group

B2M participant schema

Outbound schema version



B2M participant schema

Outbound schema version

CATS

LATEST

r44

AEMO transitions participants on LATEST to r46 for continued compliance

LATEST

r46

NMID

LATEST

r44

LATEST

r46

MDMT

LATEST

r44



LATEST

r46

CATS

CURRENT

r44

Participants on CURRENT remain on , with the setting changed to Superseded. Participants can choose when to transition to the new Current/Latest setting

SUPERSEDED

r44

NMID

CURRENT

r44

SUPERSEDED

r44

MDMT

CURRENT

r44





r44

CATS

SUPERSEDED

r43

AEMO transitions participants on the Superseded version r43 to the new Superseded version r44. r43 and earlier versions are unsupported; all responses return in r44

SUPERSEDED

r44

NMID

SUPERSEDED

r43

SUPERSEDED

r44

MDMT

SUPERSEDED

r43



SUPERSEDED

r44

6.1.3 Assign null value to site defect elements

To assign a null value for the DefectFlag, DefectType, and DefectIssuingMC elements, use the attribute xsi:nil="true" as shown in the following example.

    <MasterData>

        <DefectFlag xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:nil="true"/>

        <DefectType xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:nil="true"/>

        <DefectIssuingMC xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:nil="true"/>

    </MasterData>

6.2 Blind update tool

The Blind Update Tool Allows participants to submit a csv formatted payload containing data for new CATS Standing Data fields requiring a value A limited subset of CATS CR validations is applied to a BUT Submission The History Model is not updated so not suitable for Settlement or Compliance Standing Data (BUT Blind Update Tool) has the following changes:

  • LEGACY_METER_REPLACEMENT_PLAN field to support initial population between 26 October 2025 to 27 November 2025.
  • Updates to the LEGACY_METER_REPLACEMENT_PLAN values where the AER See Relevant Rules or Procedures has approved amendments to the LMRP Legacy Meter Replacement Plan schedule Energy Rules Terms over the acceleration period (2025-2030).
  • When the LEGACY_METER_REPLACEMENT_PLAN attribute is set in BUT, all entitled roles can request and receive the updated value in a C1 or MSATS Snapshot report.

BUT updates do not trigger CATS notifications. AEMO recommends only performing BUT updates when participants can capture and ingest changes.

6.2.1 csv submission example

A csv payload Payload example for submitting legacy meter replacement plan values is shown below.

Copy
C,TEST,BLIND_UPDATE_SUBMISSION,PARTICIPANTID,NEMMCO,2025/05/02,16:12:00,,,,NEM,BUT02050415
I,BUS,NMI_DATA,1,NMI,FIELD,NEW_VALUE
D,BUS,NMI_DATA,1,9998887771,LEGACY_METER_REPLACEMENT_PLAN,2026/05/10
D,BUS,NMI_DATA,1,9842723212,LEGACY_METER_REPLACEMENT_PLAN,2026/05/10
D,BUS,NMI_DATA,1,9483292123,LEGACY_METER_REPLACEMENT_PLAN,2026/05/10
C,END OF REPORT,6

The BUT limit for a single payload is 50,000 rows.

For information about the BUT payload format, see Create Payload and CSV Data Format Standard in Markets Portal Web applications for registered participants only. Requires access to MarketNet. Help.

6.2.2 BUT interfaces

There are no changes to the BUT interface in MSATS Web Portal or BUT API Application Programming Interface; a set of clearly defined methods of communication between various software components..

6.3 CATS standing data

New standing data items using existing cats_nmi_data CNDnn fields.

Field

MSATS standing data table

Description

Legacy Meter Replacement Plan

CATS_NMI_DATA

The scheduled replacement date for legacy meters

Defect Flag

CATS_NMI_DATA

A flag identifying the defect at site which prevents a metering upgrade

Defect Type

CATS_NMI_DATA

Enumeration values stored in MSATS_CODES_DATED

The type of defect preventing the repair of a meter or replacement of a legacy meter

Defect Issuing MC

CATS_NMI_DATA

The MC that raised the defect

Building or Property Name 2

CATS_NMI_DATA

A secondary address field for capturing additional building or property name information

The standing data items are:

6.4 Change requests and notifications

6.4.1 LMRP

Existing 5050/5051 CRs and validation rules updated to allow DNSPs to update the LMRP value.

Notifications for LMRP updates are sent to participants with an active association to the NMI See Relevant Rules or Procedures.

6.4.2 Site defects

CR Change Request 5301 – Change Defect Flag - retrospective for MCs updating the Defect flag, Defect Type, and Defect Issuing MC Meter Coordinator; The Role Code used in MSATS for an MC is RP..

Notifications for the Defect flag, Defect Type, and Defect Issuing MC updates are sent to participants with an active association to the NMI. An example is shown below.

Copy
<?xml version="1.0" encoding="UTF-8"?><ase:aseXML xmlns:ase="urn:aseXML:r46" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="urn:aseXML:r43 http://www.nemmco.com.au/aseXML/schemas/r43/aseXML_r43.xsd">  <Header><From>METERMC</From><To>NEMMCO</To><MessageID>METERNMC_MSG_20250105120200000</MessageID><MessageDate>2025-01-05T12:02:00.000+10:00</MessageDate><TransactionGroup>CATS</TransactionGroup><Priority>Medium</Priority><SecurityContext>MDHAGLE</SecurityContext><Market>NEM</Market></Header>
  <Transactions>
    <Transaction transactionDate="2025-01-05T12:02:00.000+10:00" transactionID="METERMC_20250105120200000">
      <CATSChangeRequest version="r29">
        <ChangeReasonCode>5301</ChangeReasonCode>
        <ProposedDate>2025-01-05</ProposedDate>
        <NMIStandingData version="r43" xsi:type="ase:ElectricityStandingData">
          <NMI checksum="9">9898919768</NMI>
          <MasterData>
            <DefectFlag>Y</DefectFlag>
            <DefectingIssuingMC>METERMC</DefectIssuingMC>
            <DefectType>ASBESTOS</DefectType>
    </MasterData>
        </NMIStandingData>
      </CATSChangeRequest>
    </Transaction>
  </Transactions>
</ase:aseXML>

For CR 3004/3005 Exchange See Relevant Rules or Procedures of Metering Information and 3090/3091 Advanced Meter Exchange, the NMI’s Defect flag, Defect Type, and Defect Issuing MC values are automatically set to null when a meter installation code BASIC or MRIM is removed, and a new meter installation code of COMMS or MRAM is activated. The LegacyMtrReplacementPlan value remains populated.

6.4.3 Embedded network settlement anomalies

To ensure the NMI datastream status code does not change retrospectively:

  • CR 4050/4051 includes a validation to check the embedded network child name is not populated.

  • New CR 4060 Change NMI Datastream Details – A child NMI datastream can be updated to set the datastream status as active or inactive.

A retrospective Change NMI Datastream is not available for child NMIs.

6.4.4 ICF-077 Auto populate LCCD field for new NMIs

When an NMI status is updated from Greenfield “G” to Active “A”, AEMO auto-populates the LCCD field and includes the updated LCCD field in the CR 5050/5051 and CR5060/5061 CATS Customer Administration and Transfer Solution. A set of procedures, principles and obligations made under the National Electricity Rules as part of Market Settlement and Transfer Solutions (MSATS), and applicable to NMI (National Metering Identifier) small and large classifications. notification to all participants who are entitled to receive the notifications. An example is shown below.

<?xml version="1.0" ?>

<ase:aseXML xmlns:ase="urn:aseXML:r46" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="urn:aseXML:r46 http://www.nemmco.com.au/aseXML/schemas/r46/aseXML_r46.xsd">

  <Header>

    <From description="Australian Energy Market Operator Limited">NEMMCO</From>

    <To description="Energex Limited">ENGYPART</To>

    <MessageID>NEMMCO-MSG-9898236450</MessageID>

    <MessageDate>2025-06-06T02:37:22+10:00</MessageDate>

    <TransactionGroup>CATS</TransactionGroup>

    <Priority>Medium</Priority>

    <SecurityContext>NEMMCOBATCH</SecurityContext>

    <Market>NEM</Market>

  </Header>

  <Transactions>

    <Transaction transactionID="NOTF-2739165299" transactionDate="2025-06-06T00:18:58+10:00" initiatingTransactionID="LCCDMDM">

    <CATSNotification version="r29">

         <Role>RP</Role>

         <RoleStatus>C</RoleStatus>

<ChangeRequest>

   <Participant>ENGYPART</Participant>

   <RequestID>1441204352</RequestID>

   <ChangeStatusCode>COM</ChangeStatusCode>

   <ChangeData>

      <ChangeReasonCode>5051</ChangeReasonCode>

      <ActualChangeDate>2025-06-01</ActualChangeDate>

      <NMIStandingData xsi:type="ase:ElectricityStandingData" version="r46">

         <NMI checksum="0">9990005230</NMI>

         <MasterData>

            <Status>A</Status>

            <LastConsumerChangeDate>2025-06-01</LastConsumerChangeDate>

         </MasterData>

      </NMIStandingData>

   </ChangeData>

</ChangeRequest>

<JurisdictionCode>QLD</JurisdictionCode>

<NMIClassificationCode>SMALL</NMIClassificationCode>

<ObjectionEndDate>2025-06-05</ObjectionEndDate>

</CATSNotification>

    </Transaction>

  </Transactions>

</ase:aseXML>



6.4.5 ICF-078

Affected CR Codes for new field BuildingOrPropertyName2

Change Reason Code

Impacted

2000/1

New LNSP initiating the CR

2020/1

New ENM Embedded Network Manager initiating the CR

2500/1

New LNSP initiating the CR

2520/1

New ENM initiating the CR

5001

New LNSP Local Network Service Provider. The organisation that owns the poles and wires used to distribute electricity to premises within a geographical area and in the relevant participating jurisdiction.(who must be Current LNSP As defined in the MSATS Procedures, CATS Procedures. The LNSP identified on the current NMI master record. where the NMI exist) initiating the CR

5021

New ENM (who must be Current The participant can receive files compliant to the current aseXML version. ENM where the NMI exist) initiating the CR

5050/1

Current LNSP initiating the CR

5060/1

Current ENM initiating the CR

5100/1

AEMO initiating standing data update

6.5 NMI master and NMI master summary interfaces

The NMI Master and NMI Master Summary interfaces include new fields:

  • LegacyMtrReplacementPlan
  • Defect flag
  • Defect Type
  • Defect Issuing MC
  • BuildingOrPropertyName2

6.6 RM29 standing data quality report

The RM29 SDQ report includes new queries to support the LMRP.

6.6.1 LMRP_IS_NULL query

Query ID

LMRP_IS_NULL

Purpose

Identifies BASIC or MRIM NMIs with no LMRP value. Victorian Type 5

Advanced Metering Installation (VICAMI) meters are excluded

Recipient

MC

Delivery

Participant Outbox every week

Data source

CATS

Format

aseXML compliant XML message with csv payload

Output

H row

D row example

MSATS Standing Data element name

Description

QueryId

LMRP_IS_NULL

n/a

Query identifier

Stat_Date

2024-07-08

n/a

Query run date in the format YYYY/MM/DD

ParticipantId

MCPID

Party

The party in CATS_NMI_PARTICIPANT_RELATIONS ID whose relationship (Role) with the NMI is MC



RoleId

RP

Role

The Participant relationship (Role) with the NMI in CATS_NMI_PARTICIPANT_RELATIONS

Source

CATS

n/a

[Fixed value]

Table

n/a

n/a

n/a

NMI_ID

20001000048

NMI

NMI. This number is unique for each connection point within the NEM.

METER_SERIAL

2319099

SerialNumber

NMI serial number

SDR_KEY_3



n/a

n/a

n/a

StartDate

25/11/2026

Fromdate

The NMI start date or start date of the record update

EndDate

31/12/9999

Todate

Date the record ends

Field



n/a

n/a

n/a

FRMP



FRMP

Party

The party in CATS_NMI_PARTICIPANT_RELATIONS ID whose relationship (Role) with the NMI is FRMP

LNSP



LNSP

Party

The party in CATS_NMI_PARTICIPANT_RELATIONS ID whose relationship (Role) with the NMI is LNSP

MITC

BASIC

InstallationTypeCode

Meter Installation Type Code

LMRP

12-JAN-2026

LegacyMtrReplacementPlan

Legacy Meter Replacement Plan date

Defect_Flag

Y

Defect Flag

Indicates a defect exists for a given NMI



Example

<CSVData>

H,QueryId,Stat_date,ParticipantId,RoleId,Source,Table,NMI_ID,METER_SERIAL,SDR_KEY_3,StartDate,EndDate,Field,FRMP,LNSP,MITC,LMRP,Defect_Flag

D,LMRP_IS_NULL,2025-07-08,MYMC,RP,CATS,n/a,1234567890,20009273,,2026-11-25,2027-12-31,n/a,FRMP,LNSP,BASIC,,Y

</CSVData>

6.6.2 LMRP_IN_PAST query

Query ID

LMRP_IN_PAST

Purpose

Identifies BASIC or MRIM NMIs with a LMRP date in the past and no defect is assigned

Recipient

MC

Delivery

Participant Outbox every week

Data source

CATS

Format

aseXML compliant XML message with csv payload

Output

H row

D row example

MSATS Standing Data element name

Description

QueryId

LMRP_IN_PAST

n/a

Query identifier

Stat_Date

2024-07-08

n/a

Query run date in the format YYYY/MM/DD

ParticipantId

MCPID

Party

The party in CATS_NMI_PARTICIPANT_RELATIONS ID whose relationship (Role) with the NMI is MC



RoleId

RP

Role

The Participant relationship (Role) with the NMI in CATS_NMI_PARTICIPANT_RELATIONS

Source

CATS

n/a

Fixed value

Table

n/a

n/a

n/a

NMI_ID

20001000048

NMI

NMI. This number is unique for each connection point within the NEM.

METER_SERIAL



2319099

SerialNumber

NMI serial number

SDR_KEY_3



n/a

n/a

n/a

StartDate

2026-11-25

Fromdate

The NMI start date or start date of the record update

EndDate

2027-12-31

Todate

Date the record ends

Field



n/a

n/a

n/a

FRMP



FRMP

Party

FRMP Participant ID



LNSP



LNSP

Party

LNSP Participant ID



MITC

BASIC

InstallationTypeCode

Meter Installation Type Code

LMRP

12-JAN-2026

LegacyMtrReplacementPlan

Legacy Meter Replacement Plan date

Defect_Flag

Y

Defect Flag

Indicates a defect exists for a given NMI

Example

<CSVData>

H,QUERYID,STAT_DATE,PARTICIPANTID,ROLEID,SOURCE,TABLE,NMI_ID,METER_SERIAL,SDR_KEY_3,STARTDATE,ENDDATE,FIELD,FRMP,LNSP,MITC,LMRP,DEFECT_FLAG

D,LMRP_IN_PAST,2025-07-29,MYMC,RP,CATS,n/a,1234567890,0647451,,2011-07-25,9999-12-31,n/a,SOLARIS,UNITED,MRIM,30-Jun-2025,

D,LMRP_IN_PAST,2025-07-29,MYMC,RP,CATS,n/a,2134567890,0648241,,2020-01-13,9999-12-31,n/a,MOMENT,UNITED,MRIM,18-Jun-2025,

</CSVData>

6.7 Meter exemptions

Meter exemptions include new exemption categories and a malfunction duration.

6.7.1 Meter malfunction exemption types

4 new malfunction exemption types for rectifying a meter malfunction.

Type

Nature of exemption

Timeframe to rectify

Whole Current Connected NMI

  • Faulty meter

  • Faulty comms module

30 business days

LV CT Connected NMI

  • Faulty meter

  • Faulty comms module

  • Faulty CT

  • CT cabling or test block

As specified by the MC

HV Connected NMI

  • Faulty meter

  • Faulty metering unit

  • Faulty comms module

  • Faulty CT

  • Faulty VT

  • Blown fuse

  • VT CT cabling or test block

  • Marshalling box

As specified by the MC

Family Failure

  • Whole current meter

  • LV CT meter

  • LV current transformer

140 business days for whole current meter

If the end date entered in the exemption exceeds the mandated timeframe to rectify the malfunction, the status is updated to More Info for the Participant to update.

If the status of the exemption is More Info and the required information has not been updated or received by the end date, it will be rejected.

6.7.2 Meter exemption hierarchy codes

Allowable combinations of Category Generating units modelled in the EAAP are categorised into Baseload, Intermediate or Peaking generation groups., Type, and Nature codes for meter exemptions.

Code 1 - Category

Code 2 - Type

Code 3 - Nature

MALFUNCTION

FAMILY

LV_CT

MALFUNCTION

FAMILY

LV_CT_METER

MALFUNCTION

FAMILY

WC_METER

MALFUNCTION

HV_NMI

COMMS

MALFUNCTION

HV_NMI

CT

MALFUNCTION

HV_NMI

FUSE

MALFUNCTION

HV_NMI

MARSHALL_BOX

MALFUNCTION

HV_NMI

METER

MALFUNCTION

HV_NMI

METER_UNIT

MALFUNCTION

HV_NMI

VT

MALFUNCTION

HV_NMI

VT_CT_CABLE

MALFUNCTION

LV_CT_NMI

COMMS

MALFUNCTION

LV_CT_NMI

CT

MALFUNCTION

LV_CT_NMI

CT_CABLE

MALFUNCTION

LV_CT_NMI

METER

MALFUNCTION

WC_NMI

COMMS

MALFUNCTION

WC_NMI

METER

TYPE4A

ENVIRON

ACCESS

TYPE4A

ENVIRON

ADMIN

TYPE4A

ENVIRON

CUSTOMER

TYPE4A

ENVIRON

SAFETY

TYPE4A

ENVIRON

TECHNICAL

TYPE4A

NOALTNWK

ACCESS

TYPE4A

NOALTNWK

ADMIN

TYPE4A

NOALTNWK

CUSTOMER

TYPE4A

NOALTNWK

TECHNICAL

TYPE4A

NOPUBNWK

ACCESS

TYPE4A

NOPUBNWK

ADMIN

TYPE4A

NOPUBNWK

TECHNICAL

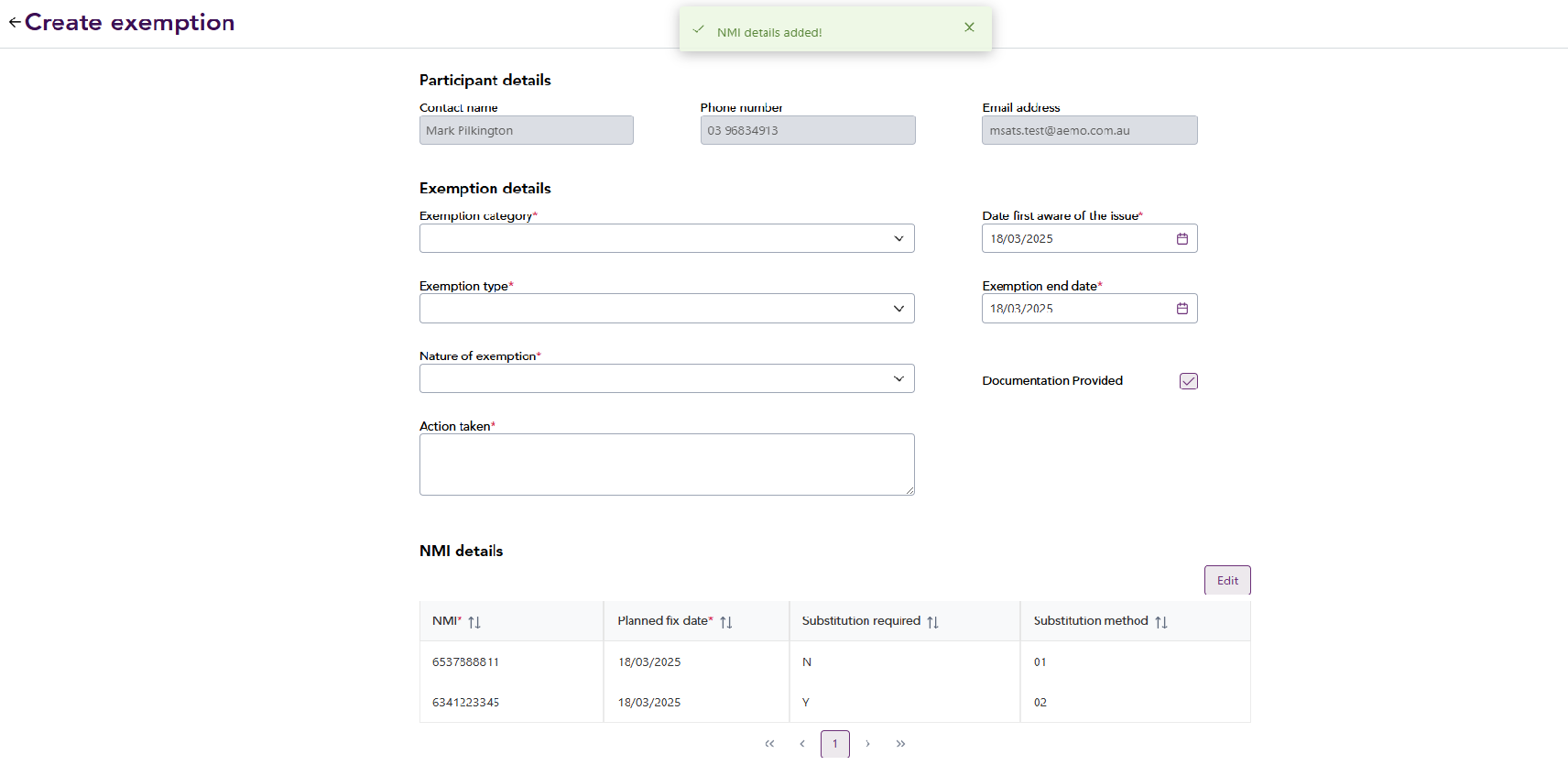

6.7.3 MSATS web portal > Meter exemptions

For MCs creating an exemption, the Participant details interface includes the following changes:

  • A Documentation provided checkbox indicating additional documentation has been sent to AEMO. This is available when creating an exemption or the exemption has a status of More Info.

  • The NMI details section includes a substitution method field to specify the substitution method when the Substitution required value is Y.

A screenshot of a computer AI-generated content may be incorrect.

6.7.4 Meter exemptions API

The Submit Meter Exemption request payload and the Get Meter Exemption Details responses include new fields.

Field

Data type

Mandatory

Description

docProvided

string

Conditional

Documentation is sent after creating or updating an exemption. Values are Y or N

substitutionMethod (JSON)

SUBSTITUTION_METHOD (csv)

string

Conditional

The substitution method when the substitution flag is set. It must be provided when substitutionReq is Y

Submit meter exemption

The Documentation provided field is added to first part of the payload request containing the meter exemptions details. The Substitution A process undertaken for the replacement of missing (null) or erroneous accumulated metering data or interval metering data where metering data has failed Validation. method is added in the second part of the JSON JavaScript Object Notification or csv Comma Separated Values. A file format for data using commas as delimiters. payload containing the meter exemption NMIs, shown in the examples below.

Meter exemption details payload example

{

"meterExemption":

  {

           "exemptionDate": "2022-08-12",

            "endDate": "2022-09-06",

           "exemptionCategory": "MALFUNCTION"

           "exemptionType": "DEFECTIVE"

           "exemptionNature": "ACCESS"

           "actionTaken": "Issue logged with Telstra. Fix ETA 13/10/2022"

           "actionReason": "Checked communications"

        “conditions”: “XYZ”,

           "docProvided": "Y"

  }

}

Meter exemptions NMIs JSON payload example

{

"meterExemptionNMIs": [

   {

      “action”: “NEW”

      "NMI": "1234567890",

      "planDate": "2022-08-06",

      "substitutionReq": "Y",

      "substitutionMethod": "01"

   }

      ]

}



Meter exemptions NMIs csv payload example

C,PRODUCTION,METER_EXEMPTION_NMI,POWERCOR,NEMMCO,2022/04/07,22:04:05,,,,NEM,0

I,MEN,ACTION,NMI,PLAN_DATE,SUBSTITUTION_REQ,SUBSTITUTION_METHOD

D,MEN,NEW,1234567890,2023/08/06,Y,01

C,END OF REPORT,4



Get meter exemption details

The new fields are included in the response when requesting metering exemption details by meterExemptionId, shown in the example below.

{

    "transactionId": "12345-abcd-27",

    "data": {

        "participantContact": {

            "contactName": "John Smith",

            "phoneNumber": "0123456789",

            "email": "john.smith@company.com"

        }

"meterExemption": {

            "meterExemptionid": "123456789012345",

            "participantId": "ENERGYCOMC",

            "startDate": "2026-08-06",

            "endDate": "2026-09-06",

            "status": "ACTIVE",

            "statusDate": "2026-08-06",

            "exemptionDate": "2026-08-12",

            "exemptionCategory": "MALFUNCTION"

            "exemptionType": "DEFECTIVE",

            "exemptionNature": "ACCESS",

            "actionTaken": "Issue logged with Telstra. Fix ETA 13/10/2026",

            "actionReason": "Checked communications",

            "conditions": "This exemption is conditional on receipt of a plan for

    the rectification of the metering installation containing the

    matters referred to in section 3.2 of the Exemption Procedure –

    Metering Installation Malfunctions",

           "docProvided": "Y",

           "extendCount": "1"

        }

"meterExemptionHistory": [

            {

                "status": "MORE DATA",

                "statusDate": "2026-07-01",

                "conditions": "This exemption is conditional on receipt of a plan for

    the rectification of the metering installation containing the

    matters referred to in section 3.2 of the Exemption Procedure –

    Metering Installation Malfunctions"

            }

        ]

"meterExemptionNMIs": [

            {

                "NMI": "1234567890",

                "status": "NEW",

                "planDate": "2026-08-06",

                "substitutionReq": "Y",

                "substitutionMethod": "01",

                "statusMessage": "XYZ"

            }

        ]

    }

}



6.7.5 Validation rules

AEMO validates all NMIs when processing the metering exemption request. The following table describes the validation and rejection reason.

Validation

Reason

Substitution method information is not provided

Substitute Required is selected but method is not provided. Exemption status is changed to More Info

An exemption with More Info status is not updated within 25 calendar days

The exemption is not updated in the required timeframe. The exemption is rejected

Exemption is sent for an extension

An extension is not allowed for meter malfunctions for FAMILY, WC_NMI, LV_CT_NMI types, and HV_NMI types with COMMS and METER nature values

Whole Current Connected NMI type exemption is sent for an extension

An extension is not allowed for this exemption type

Reject NMIs that recently had an exemption

An extension is not allowed for:

  • FAMILY type if the NMI is previously exempt in the last 365 days

  • LV_CT_NMI, LV_CT_NMI, or WC_NMI types if the NMI is previously exempt in the last 62 days

The NMI has previously been exempted for the same exemption category and exemption type for the same MC within a configured period

Previously exempt NMIs for the same exemption category and type

The NMI has a CT exemption type and the active metering installation does not have current ratio values

Current ratio values not populated for the NMI in the exemption

The NMI has an HV exemption type and the active metering installation does not have current ratio and voltage ratio values

Current ratio and voltage ratio values not populated for the NMI in the exemption
