6 IDX Web Interfaces

Industry Data Exchange See Relevant Rules or Procedures (IDX) provides web interfaces within the Markets Portal Web applications for registered participants only. Requires access to MarketNet. to monitor, troubleshoot, and manage B2B Business-to-Business. Generic term used to refer to defined business-to-business interactions between participants; excludes interactions between a participant and market systems such as MSATS. and B2M Business-to-Market transactions.

The following set of interfaces are available for this release:

• Transaction Log
• Outbound Archive

• Flow Control

• Participant Status

6.1 User rights access

Your Participant Administrator Creates and maintains access to AEMO systems for their Participant ID users. manages access to the interfaces by assigning the following entities in the Markets Portal menu Administration > Maintain Rights. For help, see User Rights Management in Markets Portal Help.

Interface	Entity
Transaction Log	TRANSLOG_TRANSLOG
Outbound Archive	ARCH_RETRIEVE
Flow Control	FCTRL_FCTRL
Participant Status	FCTRL_STATUS
Event Subscription	EVENT_NOTIFY

6.2 Data exchange

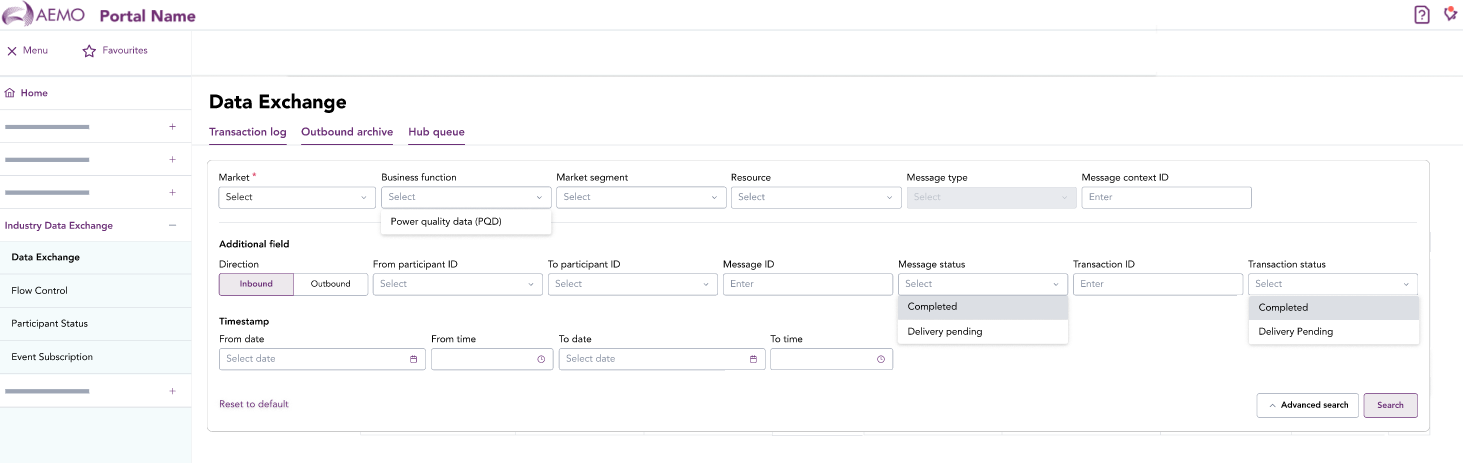

The Data Exchange menu includes interfaces for viewing and managing messages:

• Transaction See Relevant Rules or Procedures log

• Outbound archive

• Hub Queue – This interface will be available in a subsequent release.

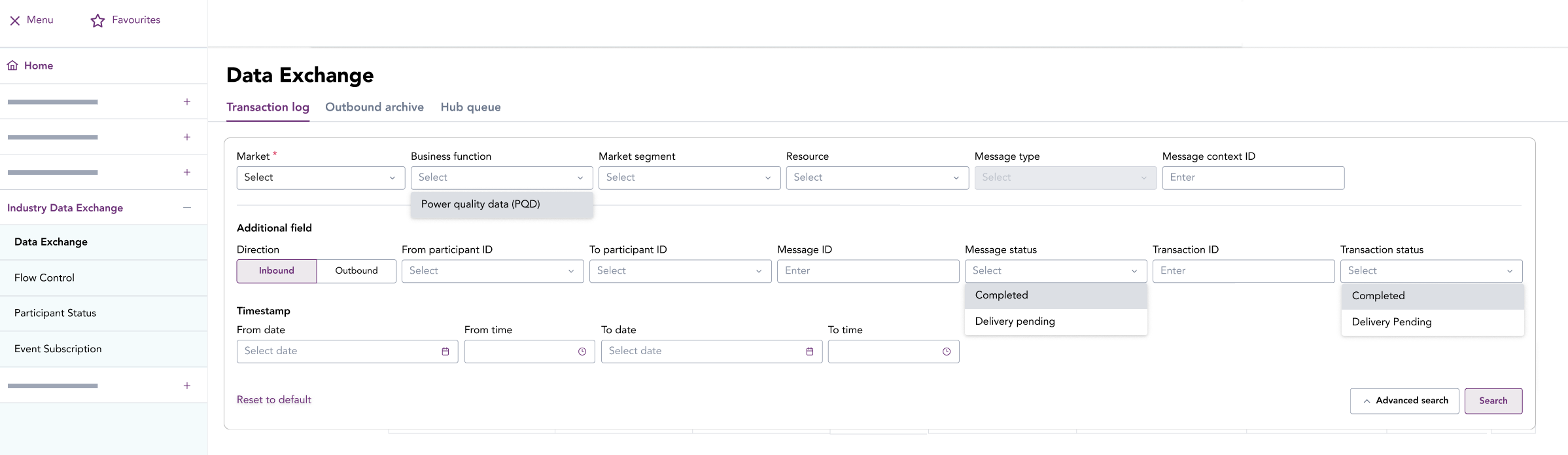

6.2.1 Transaction log

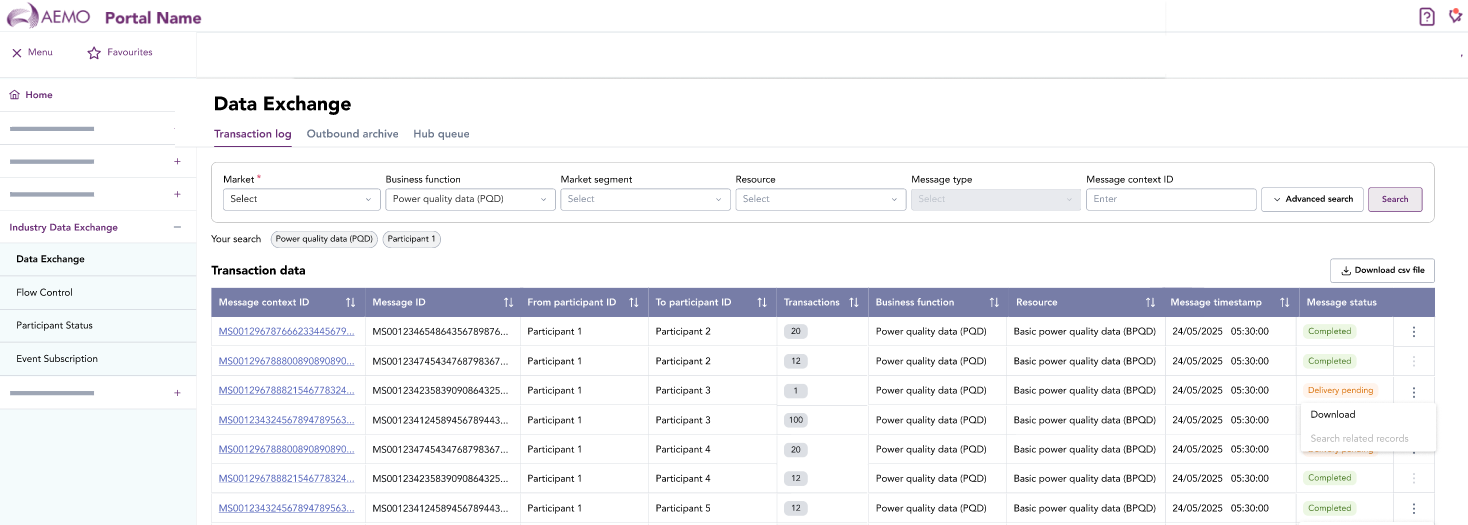

The Transaction Log interface records all transactions sent and received across markets and Business As defined in the NERL. Functions.

Participants can search for messages, download search results as a csv Comma Separated Values. A file format for data using commas as delimiters. file, view related records for request–response or fan‑out messages, track message statuses, create acknowledgements, and download message payload content.

Transaction log fields

Column name	Description
Message context ID	A unique identifier for the message, grouping related B2B transactions under a single parent message.
Message ID	Unique message identifier assigned to each message by the sender
From participant ID	The participant ID initiating or sending the message
To participant ID	The participant ID receiving the message
Transactions	The number of B2B transactions contained within the message
Business function	The market business function the message belongs to, for example, Power Quality Data (PQD)
Resource	The specific IDX API resource or transaction type, for example, Basic Power Quality Data (BPQD)
Message timestamp	The date and time the message is created
Message status	The message status. The status options available depends on the business function’s data exchange pattern. See Message status table
Action menu	The action menu provides the following options according to the business function’s data exchange pattern: Asynchronous: Delete, Download Fire and Forget: Delete, Download, Acknowledge, Reject   For more information, see action a message

Table 3 Message status

Message status	Description	Message exchange pattern
Delivery pending	Message persisted but awaiting acknowledgment	Fire and Forget Asynchronous
Completed	Outbound message successfully delivered	Fire and Forget Asynchronous
Removed	Message not deleted by receiving participant and exceeds the business function time to live (TTL)	Fire and Forget Asynchronous
Acknowledged	Acknowledgement received	Asynchronous
Rejected	Message acknowledgment is rejected	Asynchronous

Table 4 Transaction status

Transaction status	Description	Message exchange pattern
Delivery pending	Message transaction persisted but awaiting acknowledgment	Fire and Forget Asynchronous
Completed	Outbound message transaction successfully delivered	Fire and Forget Asynchronous
Removed	Message transaction not deleted by receiving participant and exceeds the business function time to live (TTL)	Fire and Forget Asynchronous

Action a message

A message listed in the Transaction Log is associated with a message exchange pattern (fire‑and‑forget, asynchronous, or synchronous). The pattern determines the actions available in the interface as shown in the table below.

Table 5 Action availability

Message exchange pattern	Delete	Download	Acknowledge	Reject		Business functions and resources
Fire‑and‑Forget	✓	✓	✕	✕		Basic Power Quality Data
Asynchronous (Request–Response)	✕	✓	✓	✓		TBD
Synchronous	✕	✓	✕	✕		TBD

Fire-and-Forget action logic

Action	Conditions	Comments
Delete	Available when the message status is Delivery Pending Unavailable when the message for a Business Function is past the Time to Live (TTL), or has been previously deleted (Completed or Removed)	Available because messages require no response Unavailable as defined by the Business Function’s TTL
Download	A message payload exists and the message status is Delivered or Completed	Message can be downloaded as a zip file in the Outbound Archive and is within the archive expiry date
Acknowledge	n/a	No acknowledgment is required in this pattern
Reject	n/a	Not applicable. Recipients cannot reject a Fire and Forget message

Asynchronous action logic

UI Action	Conditions	Comments
Download	An async message payload is available	Message can be downloaded as a zip file based on the payload format of the Business Resource
Acknowledge	Message status is Delivery pending and awaiting acknowledgment	Shown when the Participant is the responder
Reject	Allowed when an async inbound message for a business function supports rejection	Used to reject async requests in allowed business functions
Delete	n/a	Async flows is retained for auditing and legal traceability



Synchronous action logic

UI Action	Conditions	Comments
Download	Immediate synchronous response payload exists	Synchronous response is returned instantly, so only the Download action is relevant
Acknowledge	n/a	Acknowledgment is not applicable for this data pattern
Reject	n/a	Reject is not applicable for this data pattern
Delete	n/a	Removal not permitted because the synchronous request/response pair forms a single immutable event

To action a message:

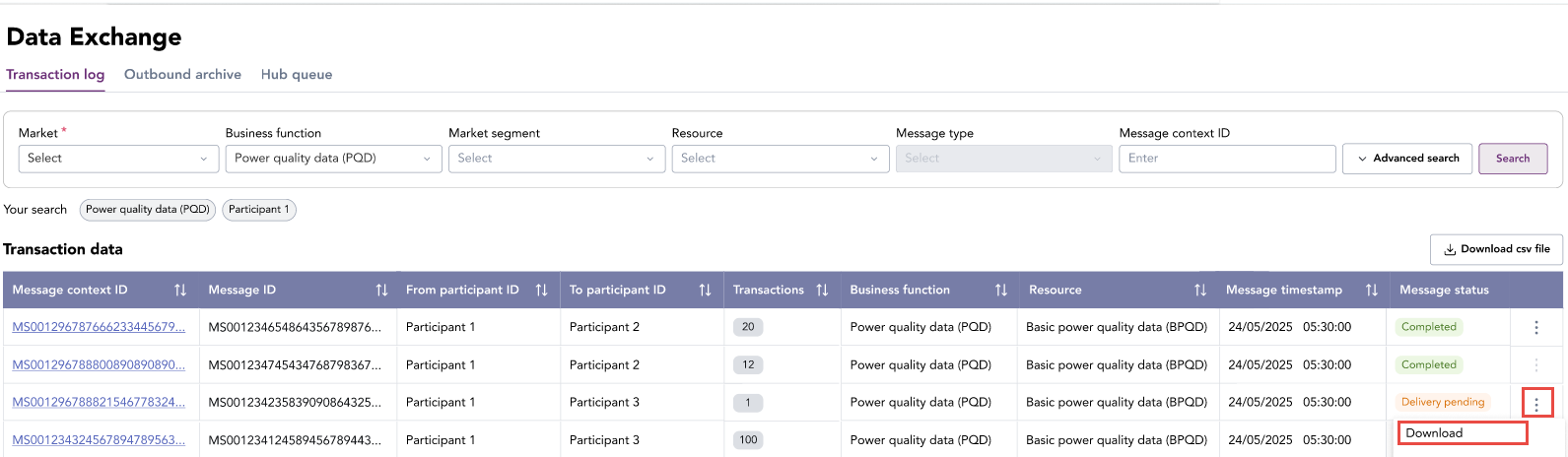

1. On the main menu, click Data Exchange, then click the Transaction Log tab.

2. Search messages.

3. On the listed message, click the actions menu (3 vertical ellipses)


4. Select the available action:
   Download – Download the message containing transactions as a csv file
   Acknowledge – Acknowledge the message
   Reject – Reject the message
   Delete – Delete the message. The message can no longer be downloaded.

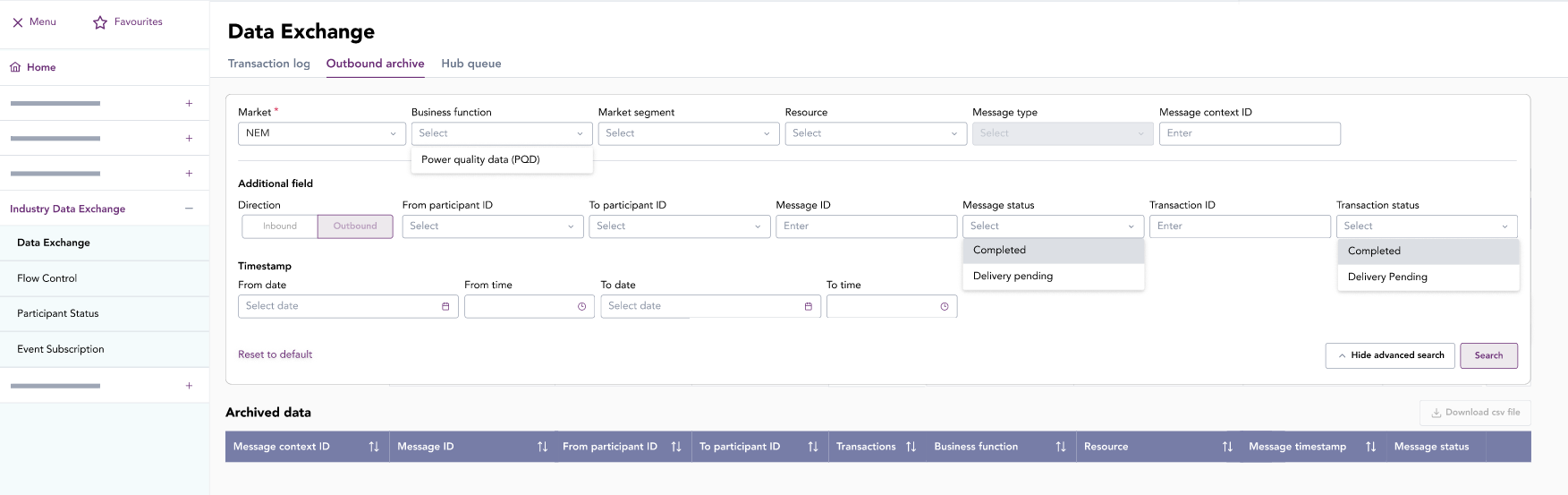

6.2.2 Outbound archive

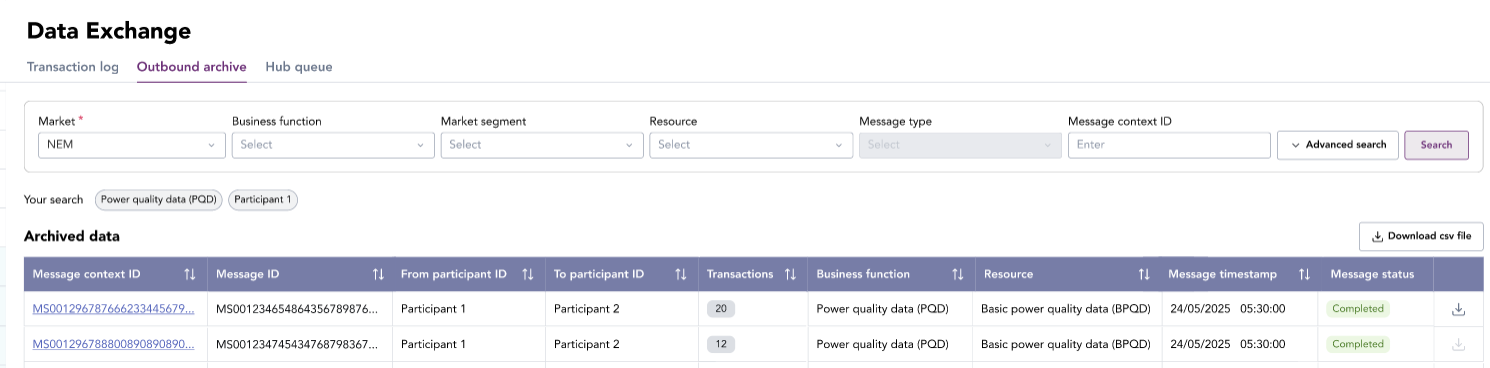

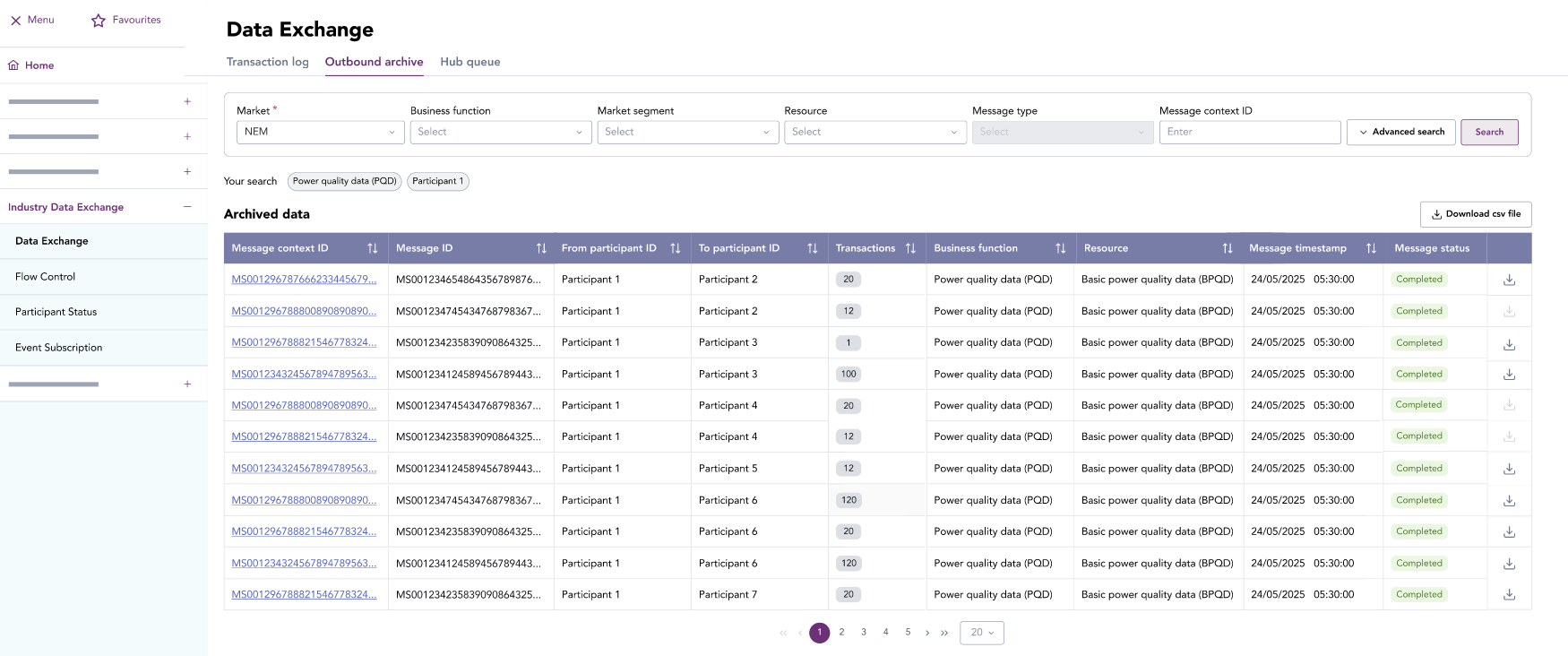

The Outbound Archive interface enables finds and downloads archived outbound messages. It is a subset of messages listed in the Transaction Log interface. It provides search filters, archive-specific metadata, and access to archived message payloads.

Section	Element / Field	Description
Search panel	Date Range (From / To)	Mandatory fields used to limit the archive search to specific dates.
	From Participant (optional)	Allows filtering by sending participant.
	To Participant (optional)	Allows filtering by receiving participant.
	Business Function	Filters archive results by IDX business function (e.g., BPQD).
	Message Context ID / Message ID	Optional filters to refine to a specific archived message.
	Search / Clear buttons	Executes the search or resets search criteria.
Archive data columns	Message Context ID	Displays the unique context grouping related archived messages.
	Message ID	Identifies the specific archived message.
	From / To Participant IDs	Sender and receiver identifiers for the archived message
	Transactions	The number of transactions in the message
	Business function	The Business Function the original outbound message was processed
	Message timestamp	The date and time the outbound message was created
	Message status	Archived message status, for example, Completed or Archived
	Download availability indicator	Indicates whether the archived item can be downloaded based on retention rules. If highlighted, the archived payload can be downloaded.
Actions	Download CSV	Exports the listed archived messages as a csv file
	Pagination Controls	Allows navigation through multi‑page archive results (max limits enforced).



Message retention

Messages or files are stored in the archive according to defined Time to Live (TTL) retention periods defined for the Business Function or Business Function Resource.

Searching archived messages

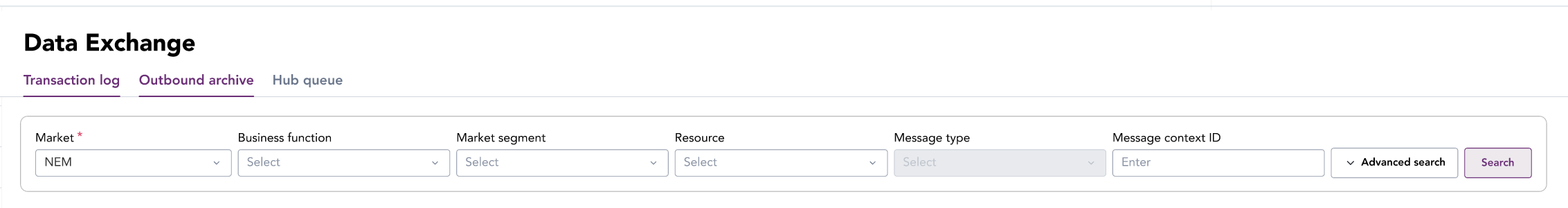

To search archived messages:

1. In the Markets Portal, navigate to Industry Data Exchange > Data Exchange and select the Outbound Archive interface.

2. In the search panel, select the Market (mandatory) and optional fields to filter the search. Click Advanced Search for additional search filter criteria.

3. Click Search to retrieve archive messages.


4. If the Download indicator is available, click the download action to download the payload as a file.

5. Click Download csv file to export search results as a csv file.

Viewing message transactions

Transaction details in a message can be viewed by clicking on the Message Context ID for the listed message. For more information, see View message.

6.2.3 Search transactions

The Transaction Log and Outbound Archive web interfaces provide search criteria to filter and locate specific messages across all business functions.

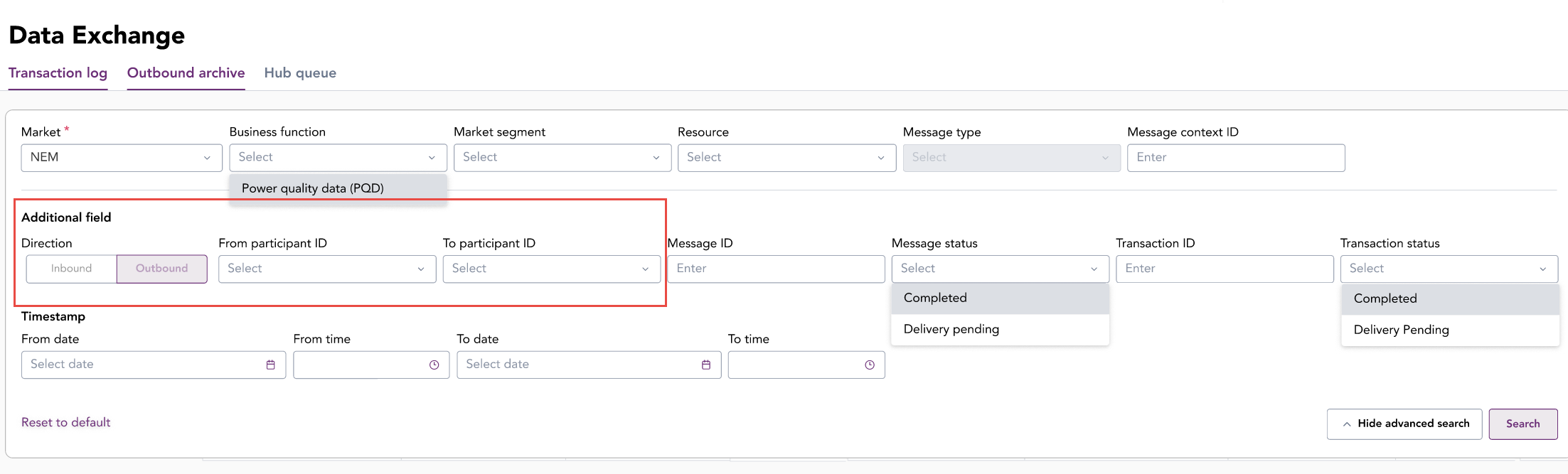

Clicking the Advanced Search to displays the advanced search panel.

Direction search filter

The Direction filter in the Advanced Search panel controls how transactions are searched relative to the Participant ID Registered participant identifier; A company can have more than one Participant ID. logged in the Markets Portal.

The Direction setting determines:

• the participant role as either the sender or receiver

• which participant ID field is fixed and which remains selectable

Direction	Description	Participant field behaviour	Search result
No direction selected	Default state	From Participant ID and To Participant fields shows the full list of available participant IDs Direction‑based entitlement constraints are not applied	Provides broader searching where direction is not required
Inbound	Transactions received by the participant ID	From participant ID field is automatically set to the main participant To participant ID displays a dropdown list of all associated or available Participant IDs	Only inbound messages addressed to the logged-in participant ID are returned
Outbound	Transactions sent by the participant ID	From Participant field displays the list of available associated or available Participant IDs To Participant field is set to the Participant ID	Only outbound messages originating from the logged-in participant ID are returned



6.2.4 View transactions

Transaction details in a message can be viewed by clicking on the Message Context ID for the listed message. For more information, see View message.

6.2.5 View message

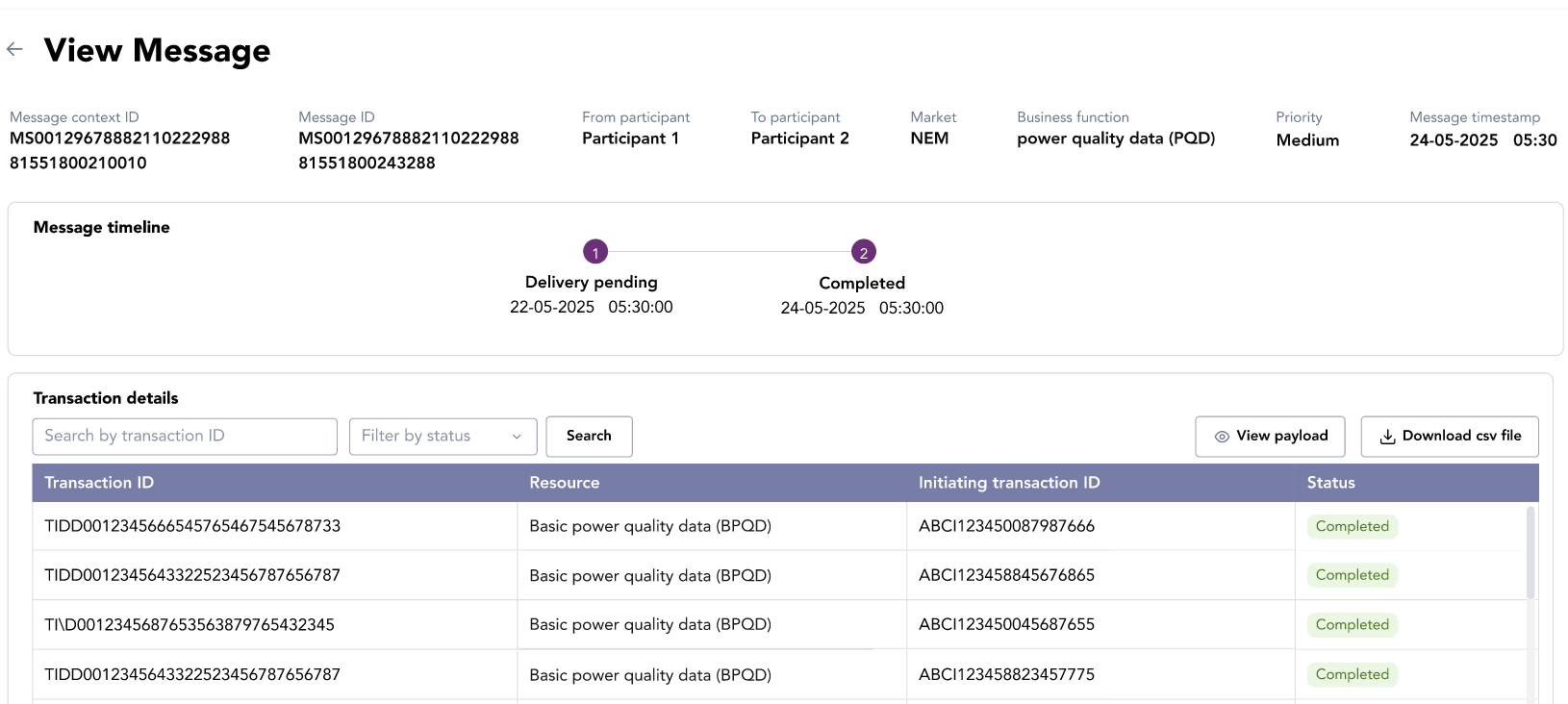

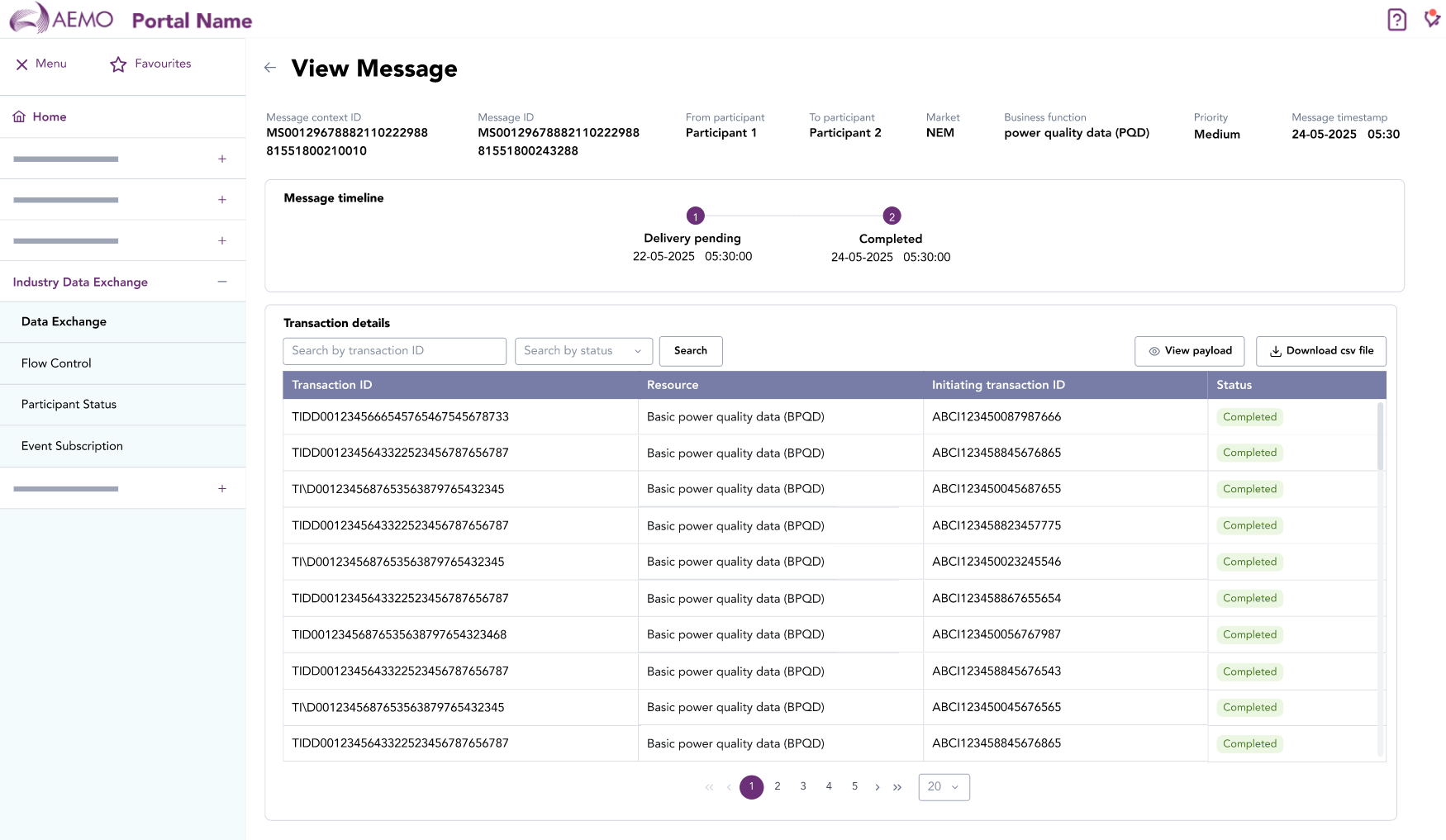

The View Message interface—available in the Outbound Archive and Transaction Log interfaces—displays a message’s metadata, delivery timeline, and all associated transactions. You can view message details, review message status, or export a list of message transactions.

The View Message interface is accessed by clicking on the message’s Message Context ID in the Transaction Log interface and Outbound Archive interface.

Section	Element / Field	Description
Message metadata panel	Message context ID	Unique message identifier
	Message ID	Identifier for this specific message instance
	From participant	Sender participant ID
	To participant	Receiver participant ID
	Market	Market classification
	Business function	The IDX business function, for example, power quality data (PQD)
	Priority	Message priority level
	Message timestamp	Date and time when message was created
Message timeline	Message status	Displays the message status and when it occurred
	Timestamps	Shows when each stage occurred
Transaction details section	Search by transaction ID	Text field for filtering the transaction list by ID
	Search by status	Dropdown list to filter by transaction status (e.g., Completed, Failed, or Removed).
	Search button	Executes filtering
Transaction table columns	Transaction ID	The unique ID for each transaction within the message
	Resource	The data resource within in the business function
	Initiating transaction ID	The transaction ID when the message is sent
	Status	The status of each transaction
Actions	View payload	Opens the payload for a selected transaction
	Download CSV file	Exports the transaction table as a CSV

View message details

To view message details:

1. On the main menu, click Data Exchange, then click the Transaction Log tab.

2. Click on the Message Context ID for the listed message. The View Message interface is displayed.

3. Filter transactions by completing the Search by transaction ID and Search by status, then click Search.

Download the list of message transactions

In the View Message interface, you can download a list of transaction metadata in the message  by clicking the Download csv file. It will download the first 100 transaction records. To download additional records, select the page with the transaction and select Download csv file again.

View and download message payload

A message payload containing transaction details can be viewed. In the Transaction Log interface, it is available when the message status is Delivered or Completed One of the status points of a Change Request..

The message can be downloaded as a zip file containing the json payload and non-repudiation signature. In the Transaction Log interface, it is not available to download when the message status is Delivery Pending A status point of a Change Request.. However, it is available in the Outbound Archive > View Message interface.

To view and download the message payload:

1. View message details.

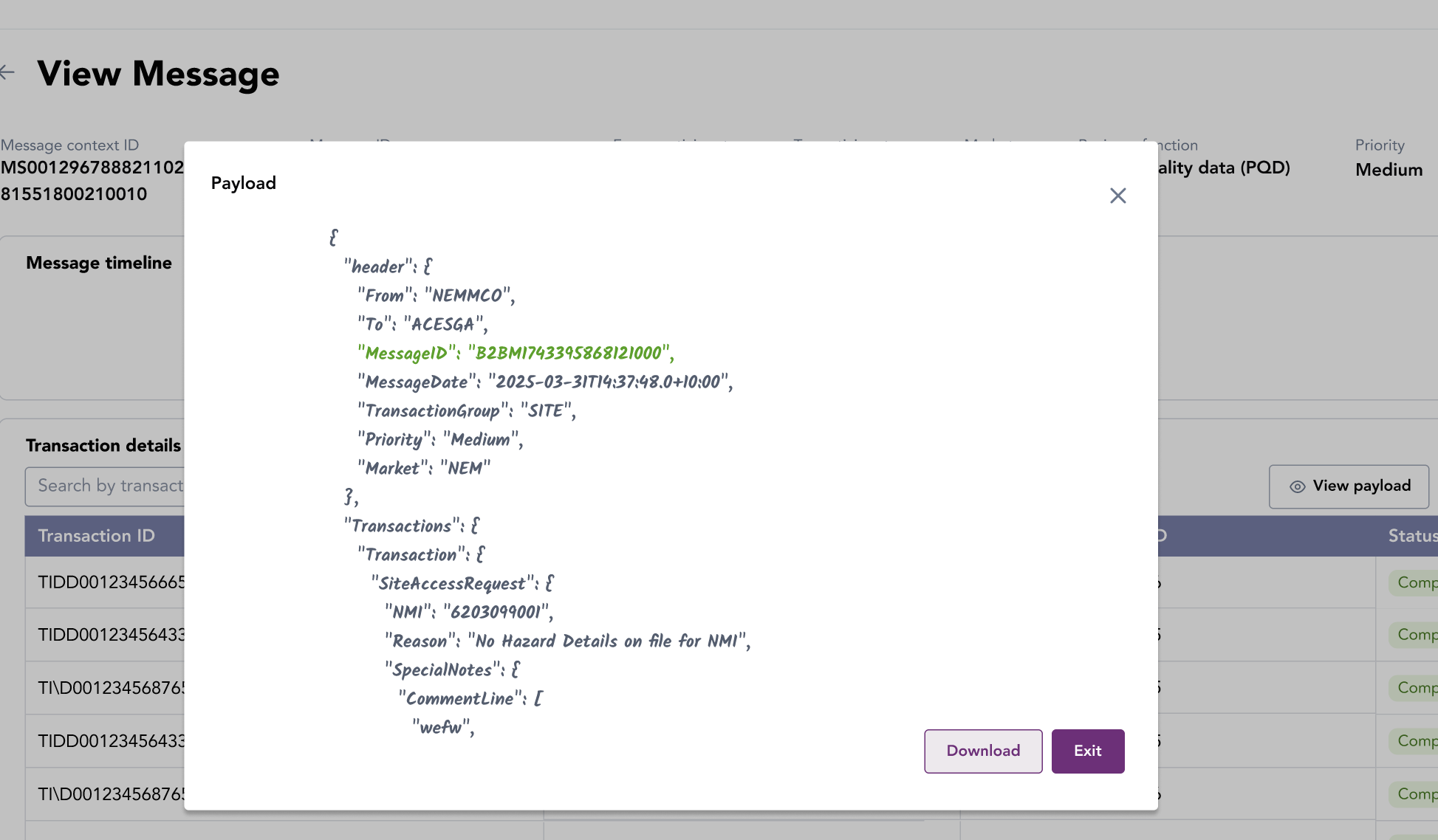

2. Click View payload. The payload is displayed in a pop-up window.

3. Click Download to download a zip file containing the payload file and non-repudiation signature file.

6.3 Flow control

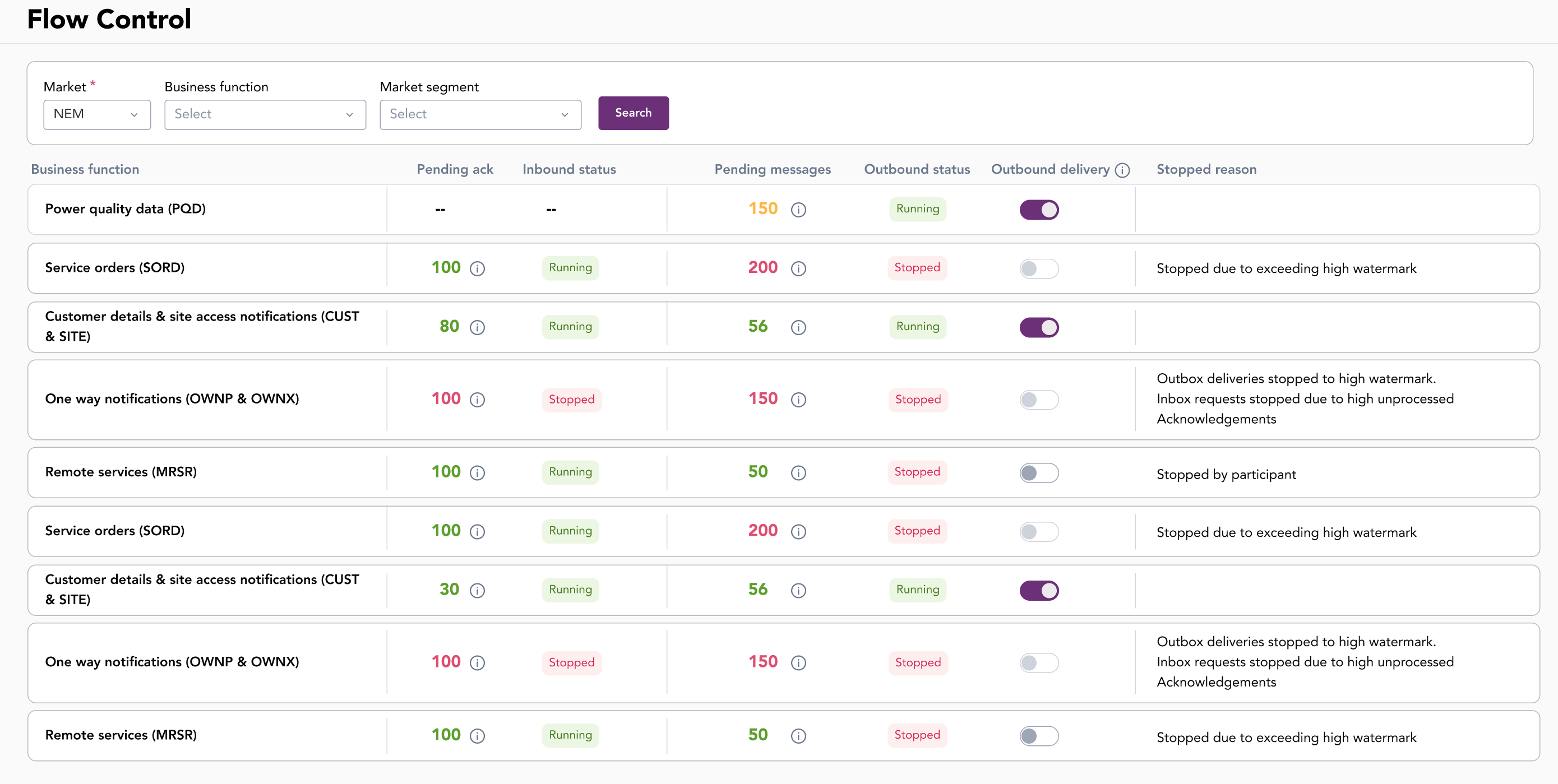

The Flow Control interface manages message queues for B2B and B2M Business Functions. It provides real-time visibility into the message processing status and allows control over outbound message delivery. The Flow Control API is also available for integration and programmatic control in participants’ systems.

The interface includes a search filter to view business functions by market, business function, and segment.

6.3.1 Understanding flow control

Flow Control in IDX manages how messages are delivered from a participant by monitoring their message queue limits defined by watermark levels. These limits are defined for each business function and determine whether participants are warned about delays or are stopped from sending files.

The watermark levels are defined for each business function. The total message count for all resources in a business function determines the queue's overall message count.

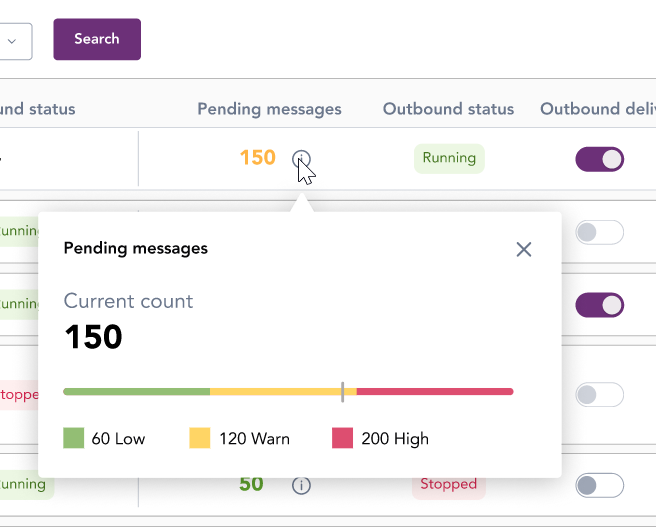

There are three watermark levels based on the number of unacknowledged or unretrieved messages in a participant’s queue.

Watermark	Inbound message	Outbound message
Low	Inbound message acknowledgement flow is operational. The Participant’s outbound queue is approaching the low watermark for pending acknowledgement messages	Inbound message flow is operational. When the participant retrieves enough messages so the message count drops below the low watermark, message flow restarts
Warn	The warning indicates that the participant is delayed in processing message acknowledgements and may soon reach a stop threshold	The warning indicates that the participant is delayed in retrieving messages and may soon reach a stop threshold
High	The number of message acknowledgements in a Participant’s outbound queue has exceeded the high threshold and the message flow is stopped	The number of unretrieved messages has exceeded the high threshold and the message flow is stopped

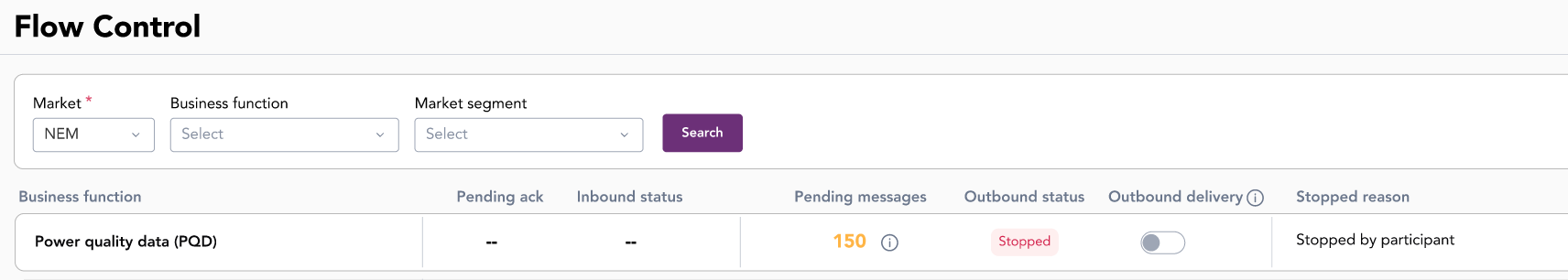

6.3.2 Flow control fields

Column name	Description
Business function	Lists the Business Functions. For this IDX Release, only Power Quality Data (PQD) will be listed
Pending ack	Shows the number of pending acknowledgements for messages. Values are colour-coded according to watermark level. Clicking the information tooltip displays watermark details.
Inbound status	Indicates the status of messages to be acknowledged: Running – Inbound flow is operational. Stopped – Inbound flow is stopped. This is only applicable for business functions using an async data exchange pattern. This is not applicable for Basic Power Quality Data (BPQD) using the Fire and Forget data exchange pattern.
Pending messages	Displays the count of messages to be acknowledged. Higher numbers can indicate congestion.
Outbound status	The outbound message delivery status is one of: Manually stopped – Outbound message delivery is suspended because of manual intervention. See Managing outbound delivery Stopped - Outbound message delivery is suspended due to flow control thresholds being exceeded. No new outbound messages are delivered to the participant until the stopped condition is cleared. Warned  - Outbound message delivery is operational. However, flow‑control threshold is approaching the configured limit. Indicates an elevated risk of outbound delivery stopping if message volumes are not reduced or pending messages are not processed in a timely manner. Running – Outbound message delivery is operational.
Outbound delivery	A switch to manually enable or disable outbound message delivery.
Stopped reason	The reason for inbound messages being stopped, such as: Stopped due to exceeding high watermark threshold reached. Inbox requests stopped due to high unprocessed acknowledgements. Stopped by participant – manual intervention.

6.3.3 Filter messages

To filter messages:

1. Navigate to Industry Data Exchange > Flow Control.

2. Use the filter options at the top of the interface to filter messages:
3. Market: Select the relevant market. For example, NEM.
4. Business function: Select the function to monitor. For example, Power Quality Data (PQD)
5. Market segment: Select a market if required.


6.3.4 Manage outbound delivery

The Outbound delivery switch allows you to temporarily stop or resume the delivery of outbound files for a business function.

While watermark‑based flow control can automatically stop message delivery when the high watermark threshold occurs, the Outbound delivery switch provides manual control.

Typically, participants pause message delivery when:

• Performing system maintenance or deployments.
• Investigating processing issues.
• Processing a message backlog and preventing new files from arriving.

To stop outbound delivery:

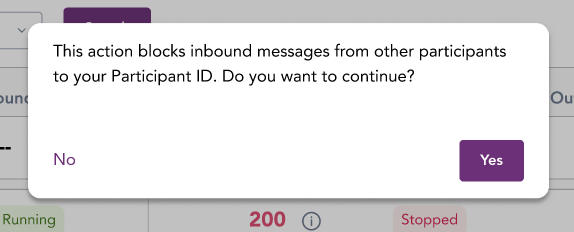

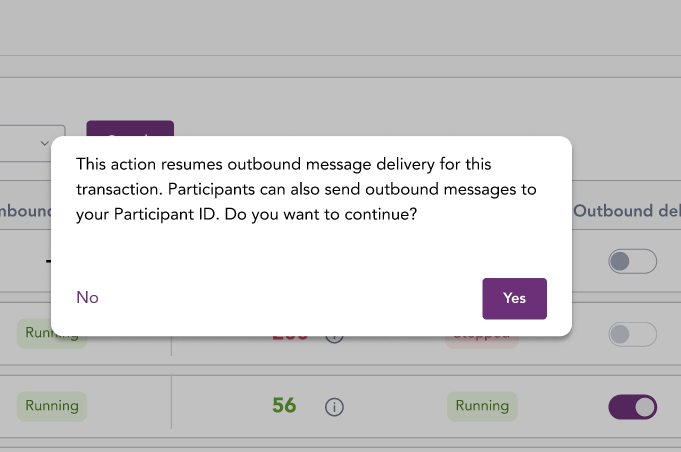

1. In the business function row, switch Outbound delivery switch to Off.
2. Confirm enabling outbound delivery.

3. Resolve any operational activities before re‑enabling delivery.

To resume outbound delivery:

1. Ensure any flow control warnings or stop conditions are cleared.
2. Switch the Outbound delivery switch to On.
3. Confirm enabling outbound delivery.


4. Monitor the pending messages and acknowledgements.

6.4 Participant status

The Participant Status web interface displays the current message flow status for IDX business functions. It shows when message delivery to or from a Participant is in a Warned or Stopped state due to flow control conditions. Business functions in a Low state are not shown.

The interface is informational only. The Flow Control web interface enables modification of a Participant’s flow control conditions.

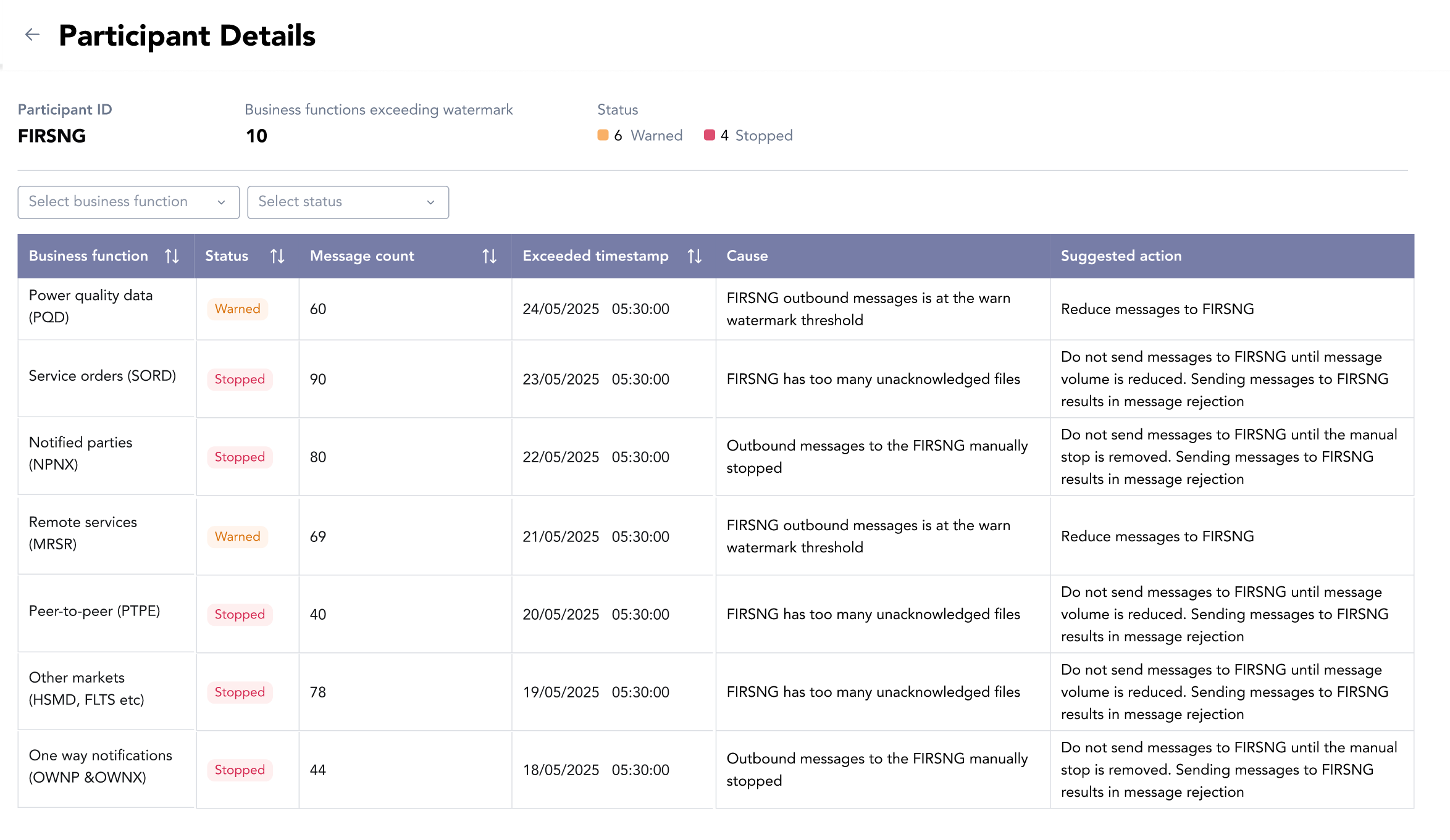

6.4.1 Overview

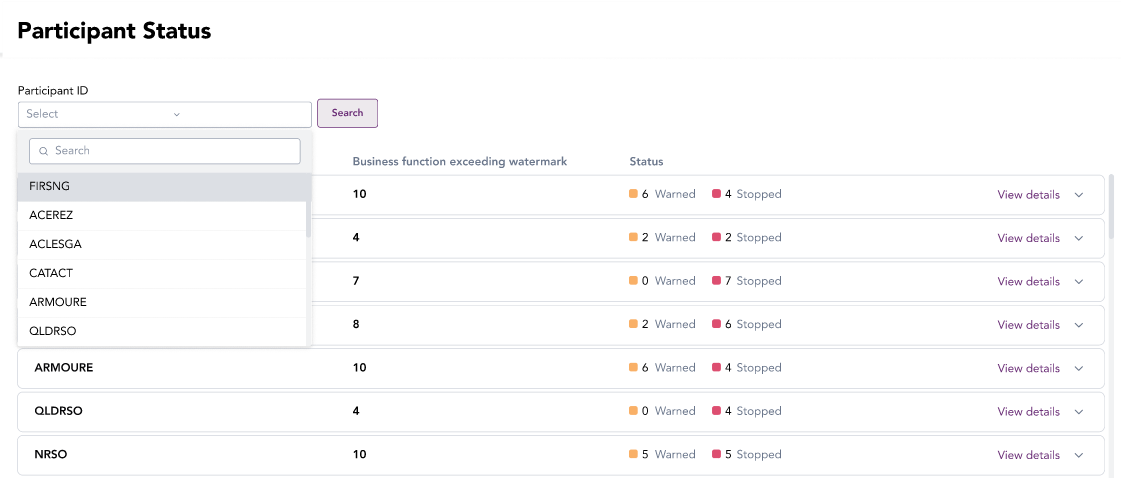

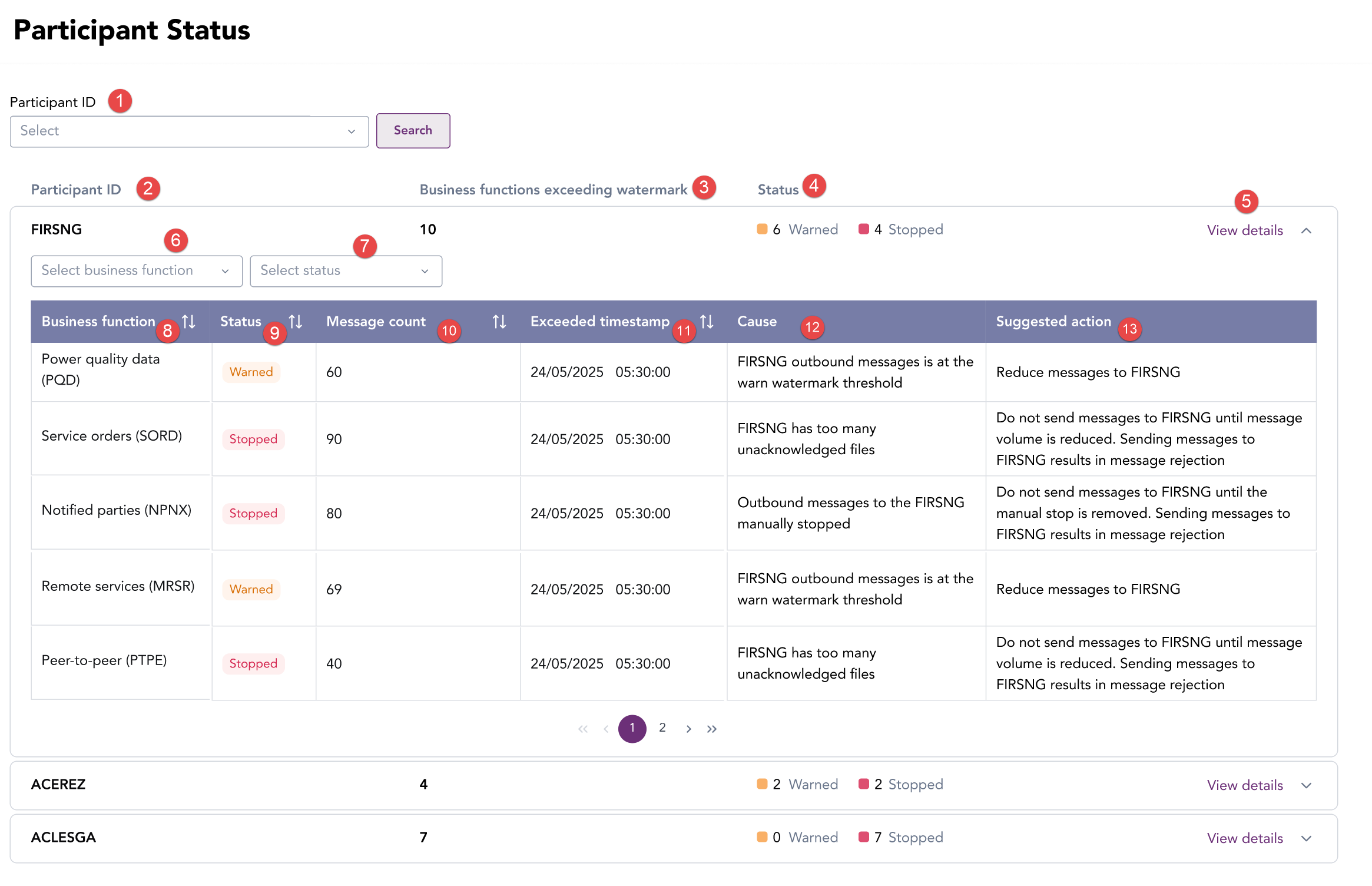

The Participant Status interface is a tabular view of participants and their associated business functions.

Drop down

	Field	Description
1	Participant ID search field	Filter view by Participant ID
2	Participant ID	Participant ID
3	Business functions exceeding watermark	The number of business functions exceeding the high watermark for the Participant ID
4	Status	The status for each participant and business function is derived from Flow Control queue thresholds. The statuses are: Normal: Message flow is operating within the business function message threshold Warned: Message queue levels have reached a warning threshold. Message delivery continues but requires monitoring Stopped:  Message delivery is stopped due to a message queue exceeding the high watermark threshold or a participant‑initiated stop
5	View details	Drop down displaying additional status information for the participant and associated business functions and resources
6	View details > Select business function	Drop down filter to display selected business function
7	View details > Select status	Drop down filter to display business functions by status
8	View details > Business function	The IDX business function associated with the Participant. Each row represents one business function
9	View details > Status	The current message‑flow status for the participant and business function. Indicates whether message delivery is: Warned - approaching a flow‑control limit Stopped - message delivery halted
10	View details > Message count	The number of outbound messages queued or unacknowledged for the participant and business function
11	View details > Exceeded timestamp	The date and time when the business function first exceeded the  flow‑control threshold or was stopped.
12	View details > Cause	A system-generated description explaining why the status was applied
13	View details > Suggested action	Guidance recommending the operational response

6.4.2 Filter participant status

The Participant Status view can be filtered by Participant ID.

To filter by Participant ID:

1. Navigate to Industry Data Exchange > Participant Status.
2. In the Participant ID dropdown, select the Participant ID and click Search.


       A Participant’s message‑flow status across IDX business functions is displayed.
