Fast Frequency Response

About

The Australian Energy The unit must be a generator for the service type: ‘energy’. Loads cannot bid for mandatory restrictions capacity. Market Commission (AEMC Australian Energy Market Commission. The rule maker for Australian electricity and gas markets.) has made a final rule to introduce two new Market Ancillary Services See Relevant Rules or Procedures in the NEM under the existing Frequency Control Ancillary Services (FCAS Frequency Controlled Ancillary Services. A service that balances, over short intervals (shorter than the dispatch interval), the power supplied by generating units and the power consumed by loads.) arrangements, accompanied by additional reporting requirements.

The introduction of these services helps keep the future power system secure and fosters innovation in faster responding technologies helping to lower costs for consumers.

Goal

Fast Frequency Response The information returned by an API after a request is made. Responses are usually in JSON or XML format. (FFR Fast Frequency Response) introduces two new Market Ancillary Services: Very Fast Lower Service and Very Fast Raise Service. Fast Frequency Response refers to the delivery of a rapid Active Power increase or decrease by Generation Energy Rules Terms or Load in a time frame of 2 seconds or less, to correct a Supply demand imbalance and assist in managing Power System frequency. FFR is a relatively new service offered by inverter-based technologies such as wind, solar photovoltaics (PV), batteries, and demand-side resources.

For more information on FFR changes, see Fast frequency response market ancillary service.

High-level changes

Function

Description

Reference

APIs

Adds new LOWER1SEC and RAISE1SEC values

NEM Dispatch Bidding Open API Specification Reference

Portfolio Management System

The web interface now includes the new LOWER1SEC and RAISE1SEC fields on the Portfolio and Applications screens

Portfolio Management System

Bidding and Dispatch

The Bidding web interface includes two new service types: LOWER1SEC and RAISE1SEC

The FTP JSON files now include two new columns: LOWER1SEC and RAISE1SEC

Markets Portal > EMMS > Offers and Submissions > Energy & FCAS Bids

Settlement Reports

Updates SR reports to include line items and fields related to LOWER1SEC and RAISE1SEC.



EMMS Data Model v5.2

New and updated tables in BILLING, DISPATCH, SETTELEMENT_DATA, P5MIN, PREDISPATCH, TRADING_DATA, FORCE_MAJEURE, packages

EMMS Technical Specification - Data Model – May 2023

Portfolio Management System

This Release updates the Markets Portal Web applications for registered participants only. Requires access to MarketNet. > Portfolio Management System web interface as follows:

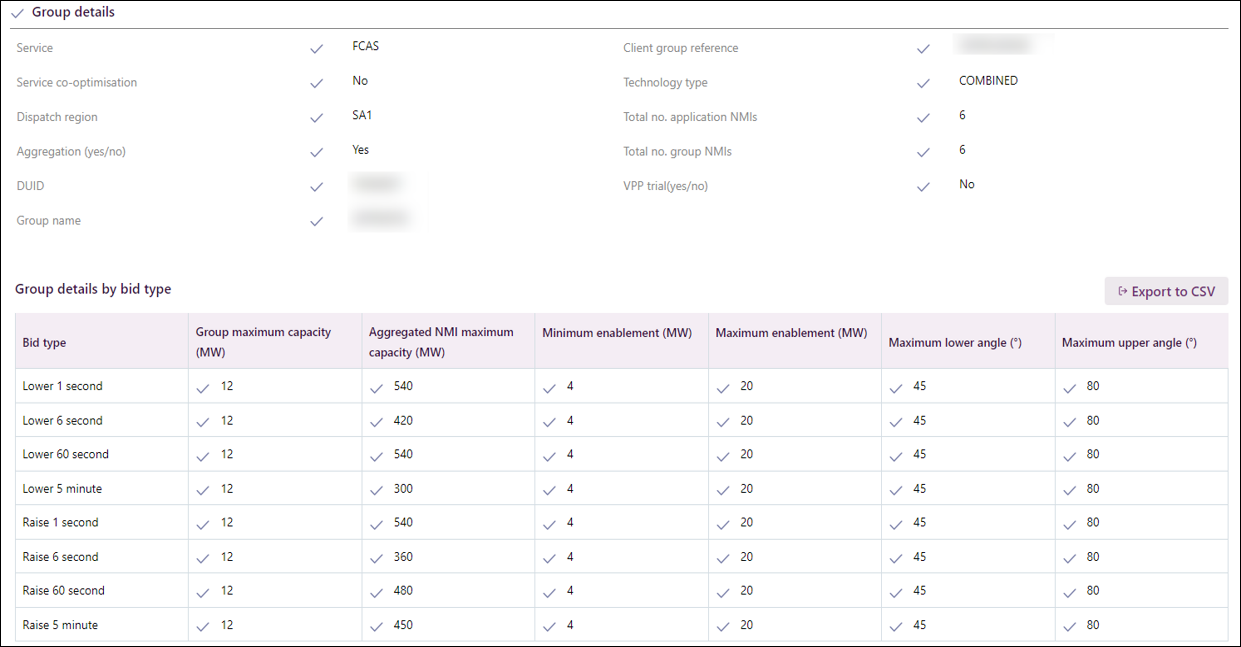

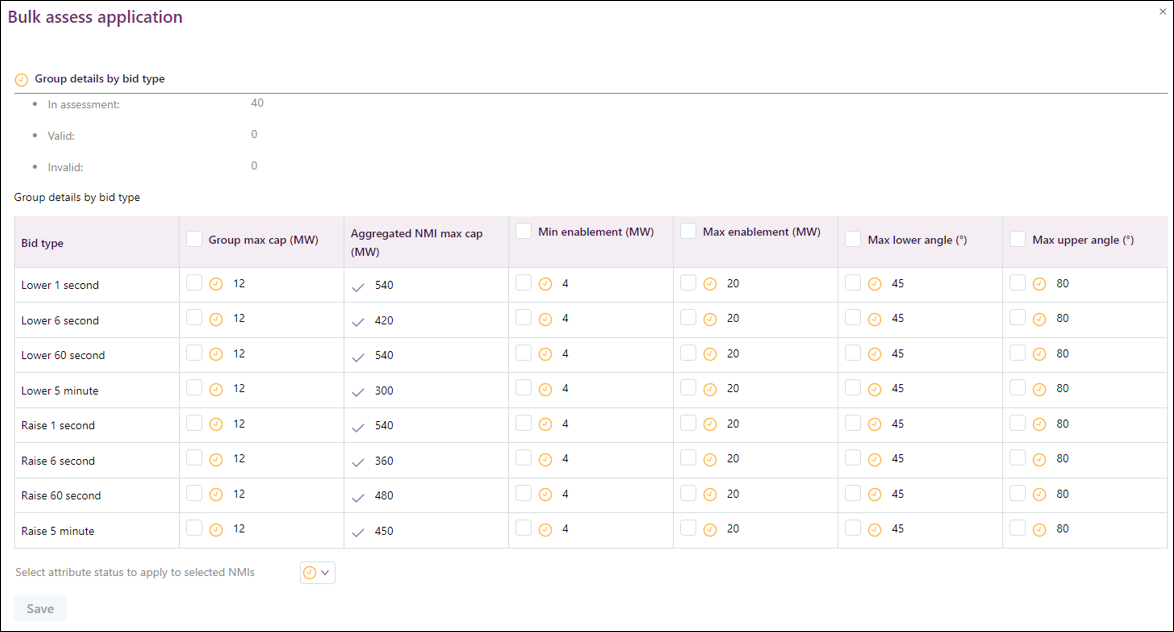

  • Bulk assessment application screen > Group details by bid type table: Adds new bid types Lower 1 sec and Raise 1 sec.

  • Updates the aggregated metric at the NMI level to display FFR bid types.

  • Adds the Lower 1 sec and Raise 1 sec options to the following screens:

All Portfolios: portfolios tab, groups tab, WDR Wholesale Demand Response NMIs tab, FCAS NMIs tab

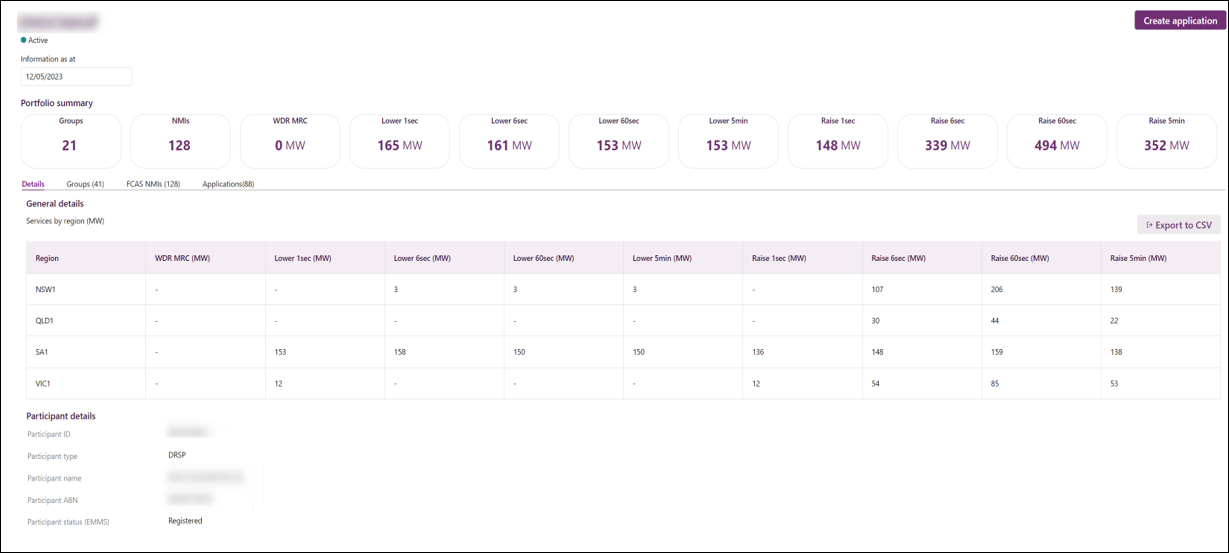

Portfolio: groups tab, WDR NMIs tab, FCAS NMIs tab, applications tab

Group: details tab, WDR NMIs tab, FCAS NMIs tab, applications tab

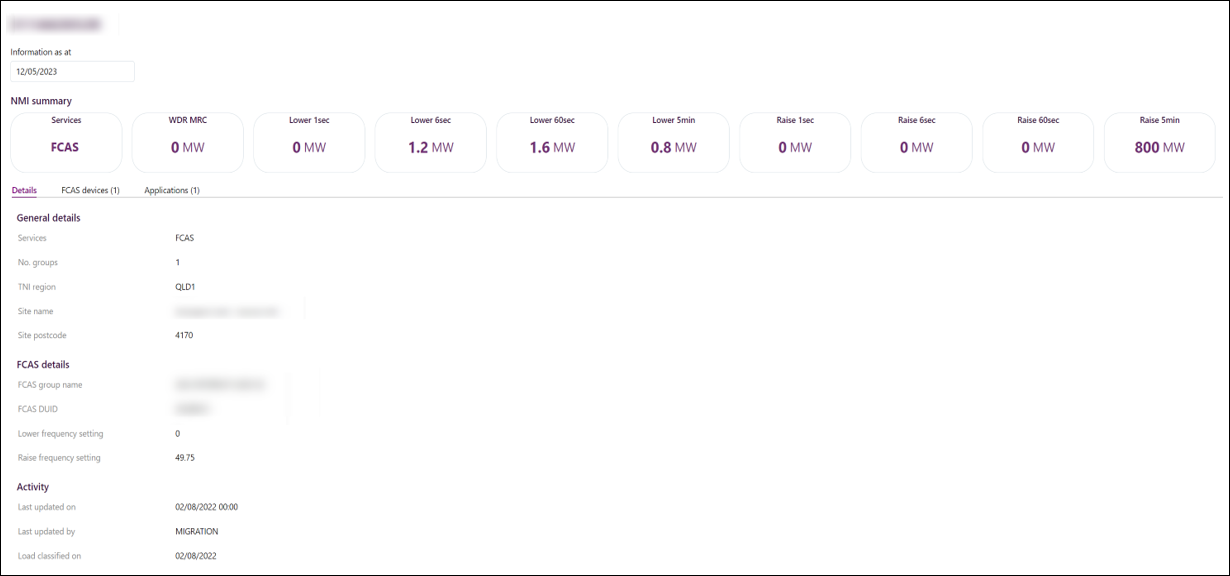

NMI See Relevant Rules or Procedures: details tab, applications tab

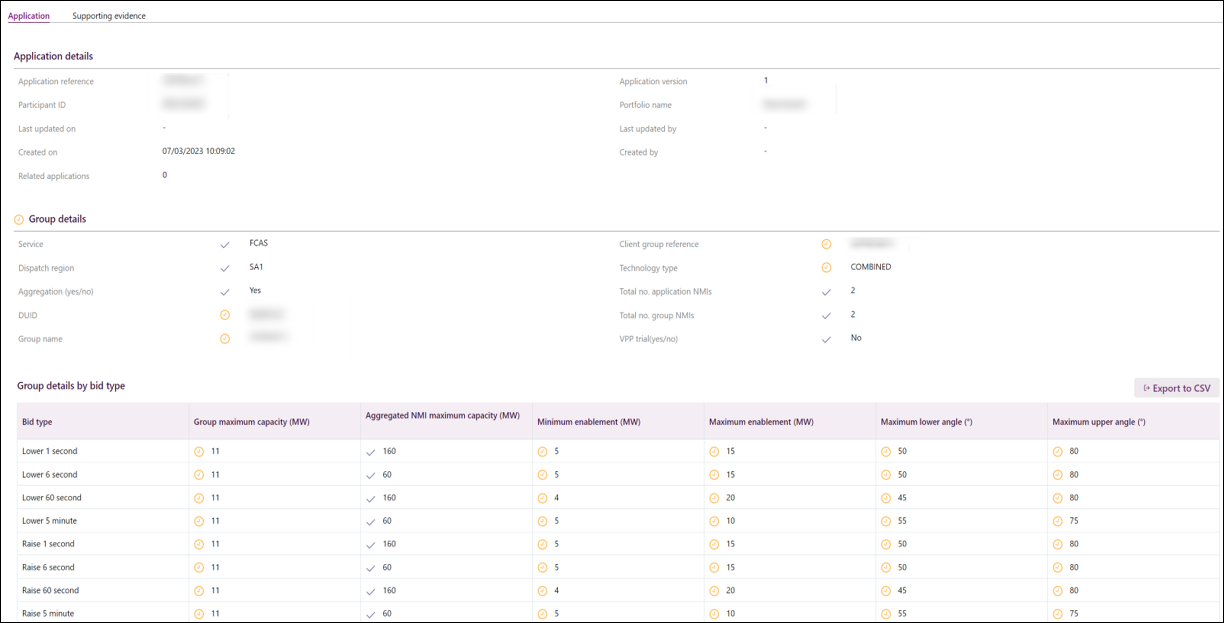

Applications: all applications tab, in progress tab, closed tab

FCAS Application: group details section

Markets Portal > EMMS > Offers and Submissions > Energy & FCAS Bids

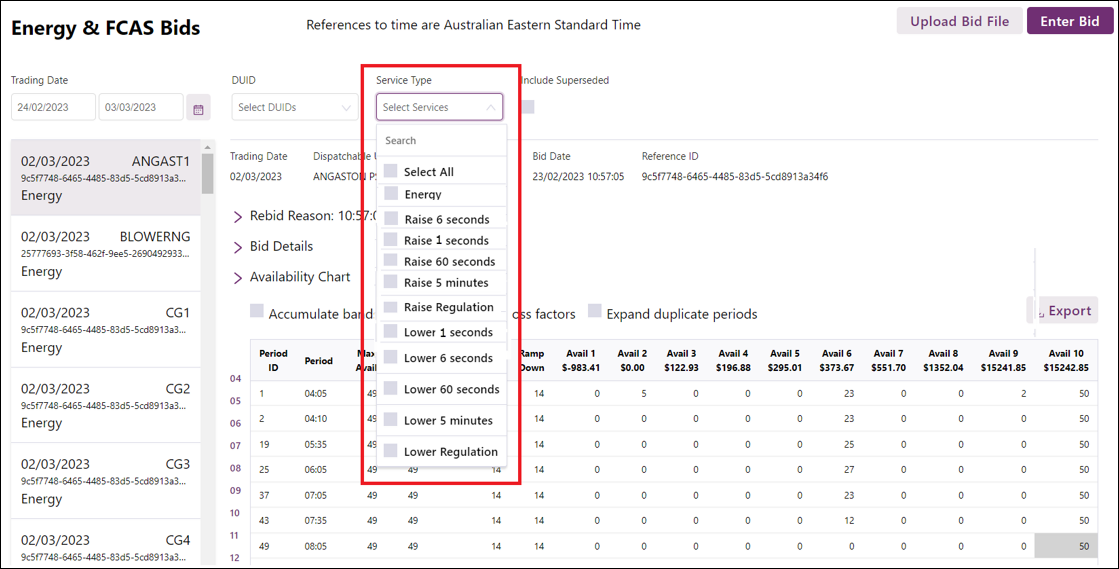

In the Energy & FCAS Bids web interface, the service type includes two new values:

  • Raise 1 second

  • Lower 1 second

NEM Dispatch Bidding Open API Specification Reference

Adds new values - RAISE1SEC and LOWER1SEC as below. For more information, see NEM Dispatch Bidding Open API Specification Reference.

POST submitBids

Adds the following values to the service attribute:

One of the FCAS service types. Required for fcasBid. Required properties: one of, RAISE1SEC, RAISE6SEC, RAISE60SEC, RAISE5MIN, RAISEREG, LOWER1SEC, LOWER6SEC, LOWER60SEC, LOWER5MIN, LOWERREG, type: string maximum 10, format: upper case

Get /getBid

For the service attribute, adds the following new values:

The Bid/Offer The term Bid relates to the following Dispatch Bids: Energy (Scheduled Loads or Wholesale Demand Response Units). The term Offer relates to the following Dispatch Offers: 1. Energy (Generation Dispatch Offer) 2. Frequency Control Ancillary Service (FCAS) 3. Market Network Service Provider (MNSP - Network Dispatch Offer) service type, one of, ENERGY, MNSP Market Network Service Provider. A network service provider (NSP) that earns revenue from the spot market., RAISE1SEC, RAISE6SEC, RAISE60SEC, RAISE5MIN, RAISEREG, LOWER1SEC, LOWER6SEC, LOWER60SEC, LOWER5MIN, LOWERREG, type: string maximum 10, format: upper case

Settlements Reports

SR report

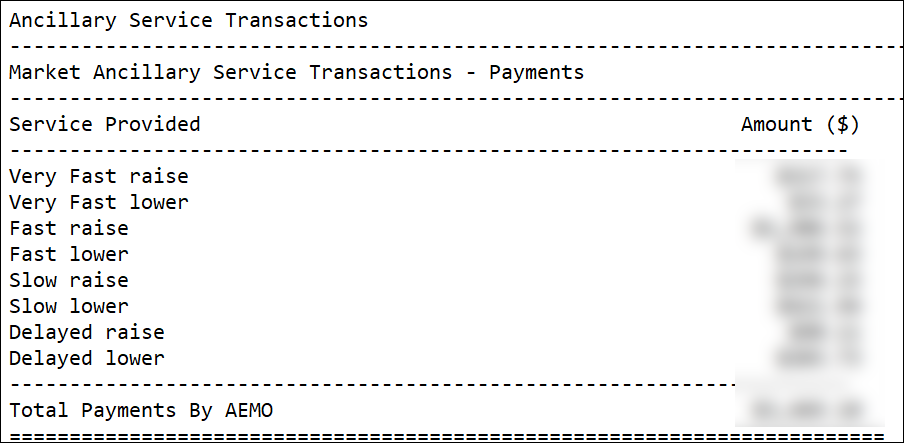

The Ancillary Service Transactions section includes new line items for Very fast raise and Very fast lower.

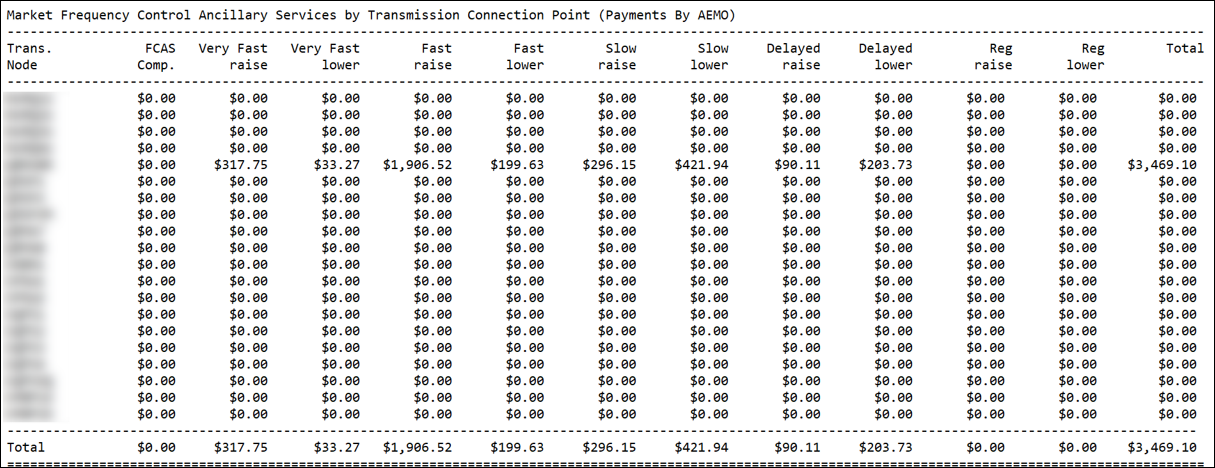

The Market Frequency Control Ancillary Services by Transmission Connection Point (Payments By AEMO) section now includes columns for Very fast raise and Very fast lower.

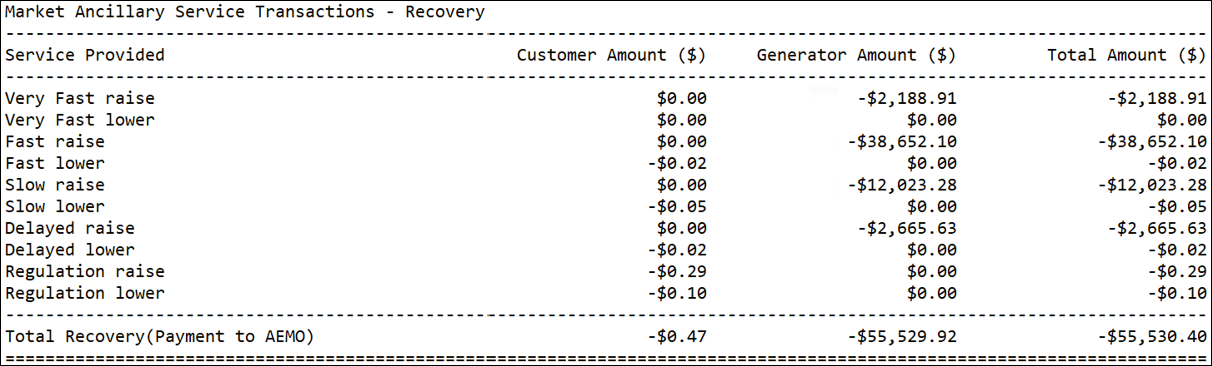

The Market Ancillary Service Transactions – Recovery section also includes new line items for Very fast raise and Very fast lower.

Ancillary service reports

The CSV reports for ancillary service – AS_PAYMENTS_SUMMARY and AS_RECOVERY_SUMMARY include new columns for RAISE1SEC and LOWER1SEC.

Data model v5.2

Note: Only the data Model structure is released for Data Model The definition of the interface to participants of data published by AEMO for gas or electricity. A database conforming to the Data Model can contain a local copy of all current participant-specific data recorded in the main database. The Data Model includes database tables, indexes, and primary keys. v5.2.

Pacakage

Table

File ID

BILLING_RUN



BILLINGASPAYMENTS

BILLING



BILLINGASRECOVERY
DISPATCH



DISPATCHLOAD

DISPATCHIS



DISPTACHPRICE

FORCE_MAJEURE

APEVENTREGION

APEVENTREGION



MARKET_SUSPEND_SCHEDULE

MARKET_SUSPEND_SCHEDULE

P5MIN

P5MIN_FCAS_REQUIREMENT

P5MIN

PRE_DISPATCH

PREDISPTACHPRICE

PREDISPATCHIS

SETTLEMENT_DATA

SET_FCAS_PAYMENT

SETTLEMENTS





SET_FCAS_RECOVERY

TRADING_DATA

TRADINGPRICE

TRADINGPRICE

For details, see EMMS Energy Market Management System (formerly MMS); software, hardware, network and related processes. Technical Specification - Data Model - May 2023.

The NEM reports and data to populate fields are released in:

  • Pre-production: Thursday, 6 July 2023

  • Production: Wednesday, 9 August 2023
